1pc New manual sheet metal iron aluminum copper plate bending machine

1pc New manual sheet metal iron aluminum copper

plate bending machine

Notice :
when the parcel arrived to your customs ,please pay the
tax and pick up the parcel ,we are not responsible for
any customs duty or import tax

if your place is remote ,then need to pay 35usd .

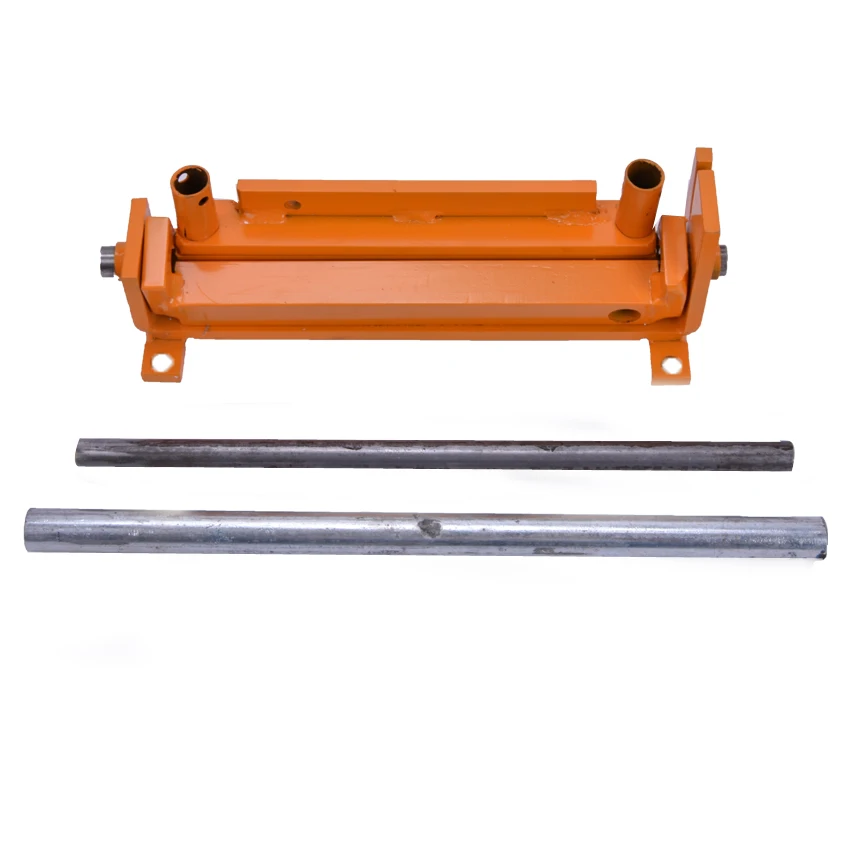

picture showing:

Notice : if your place is remote ,then need to pay 35usd extra !

Describtion:

Folding processing capacity:

Maximum width and thickness: 210 mm, thickness should be 2.0 mm. The minimum bending Angle: 90 °.

Note: 210 mm refers to the two screw torque from between the outer ring. The distance between the two socket wrench the outer ring is 200 mm. (slightly larger than 200 mm, not smaller than 200 mm).

Applicable materials:

Galvanized sheet, aluminum, iron, stainless steel plate (because of its high strength, the thickness of the bend is twice as narrow small double or width)

The clamping way:

The bending machine adopts built-in socket wrench nut to clamp, and mounted with transverse slot type clamp t-shaped clamp (see below), can be very convenient clamping need bending artifacts.

Fixed installation method:

In general, this product is don’t need to be fixed. But fixed more convenient.

Dimension: 350 * 100 * 100 (wire rod in horizontal) weight: 6 kg.
