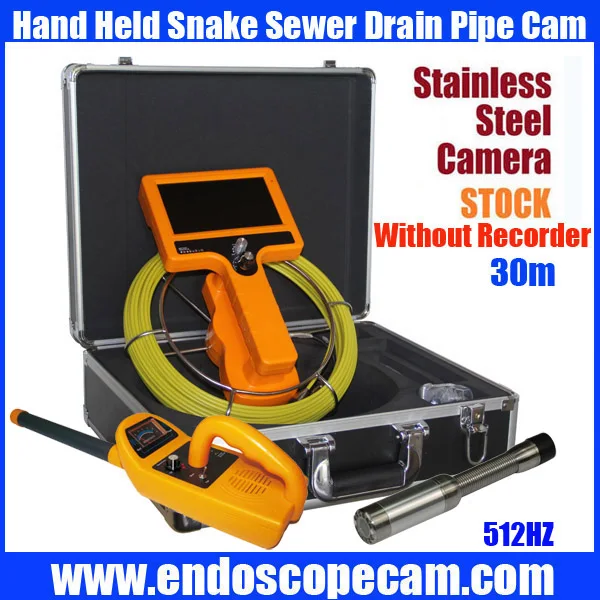

30M Hand Held 512HZ Sonda transfer and 512 sonda Receiver Snake UnderWater Sewer Drain Pipe Inspection Endoscope Camera

30M Hand Held 512HZ Sonda transfer and 512 sonda Receiver Snake UnderWater Sewer Drain Pipe Inspection
Click to see details
30M Hand Held 512HZ Sonda transfer and 512 sonda Receiver Snake UnderWater Sewer Drain Pipe Inspection
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $1200.00 / piece
Sale price:  US $1140.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

30M Hand Held 512HZ Sonda transfer and 512 sonda Receiver Snake UnderWater Sewer Drain Pipe Inspection Endoscope Camera

7″ Color LCD Monitor

IP68 Water Proof

Color CCD Stainless Steel Camera with 12 LED Lights

120 Degree View Angle

20M-50M Fiberglass Cable & Stainless Steel Reel

Rechargeable Battery Supporting 4-5 Hours Working

Australian Standard Charger

with Carrying Box

Long Term Spare Parts Supply

1 Year Australian Warranty(SKU:CEP-164)

Features:

  • New Model, Much better quality than other model

  • Hand Held, Very Convenient to use

  • Stronger Cable 6mm Diameter while others are 4 mm diameter

  • Stainless Steel Camera 22mm Diameter More Flexible

  • Brightness Adjustable 12 LEDs More light in dark area

  • Broad View Angle 120 Degree View others only 92 Degree

  • Water Proof IP68 Standard

  • Longer Working Time per Charge 4-5 hours per charge others only 1-2 hours

  • Long Term Reliable Spare Parts Supply

Camera specifications:

  • Camera size:23mmx120mm

  • Front size: 45mm

  • Camera case material:stainless steel house stainless steel 304

  • Camera glass material:sapphir glass

  • Sensor size:1/4 inch

  • Total Pixels:PAL:720X576 NTSC: 720X480

  • View angle:120

  • Camera light:12PCS white LEDS

  • Special gold point touch connector

  • Waterproof:IP68

  • Camera work current:100MA

  • Camara power supply:DC 12V

  • LEDS ADJUASTABLE

  • Working temperature:-10-50

  • Specification:

    DISPLAY

    7 INCH Color LCD

    Color SYSTEM

    PAL/NTSC

    Resolution

    320 TV Lines

    Camera Head

    Stainless Steel 304

    VIDEO

    1 VIDEO OUTPUT

    POWER Adaptor

    AC 110V-240V

    WORKING TEMPERATURE

    From -10 Degree to 50 Degree

    Water Proof Grade

    IP68

    CAMERA

    COLOR CCD

    Cable Length

    20M-50M

    POWER CONSUMPTION(W)

    14W

    NIGHT VISIBILITY

    12 WHITE LED 3M UNDER WATER

    VIEWING ANGLE(Degree)

    120Degree

Packing List:

  • 7″ Hand Held Sewer Camera Main Unit X
  • 20M Fiberglass Cable X1
  • Rechargeable Battery(Build Inside) X 1
  • Charger X 1
  • SKID X2
  • User Manual X 1

Battery:

  • Battery type: 12V 4000MAH

  • Rechargable li ion battery

Box:

  • Box material: Fire protection

  • Box size:48cm x 39cm x 19.5cm

SKIDS size:

  • SKIDS1: 40MM

  • SKIDS2: 80MM

Fiberglass cable length: 20m

  • Fiberglass diameter: 4.8MM

  • Fiberglass color: yellow

Pictures taken by this unit in a dark water tank.

Operation Interface:

512hz transmitter

Brand New Sewer Pipe Drain Pipe Locator

Analog 512HZ Sonda Receiver

Sensitivity and Far / Near Adjustable

Direction of the pipe line

Signal Strength Meter Indicator

Battery Indicator

Speaker and earphone output

Operated on 6 AA Alkaline Batteries(not included)

Carrying Box

1 Year Australian Warranty

This item is for 512HZ Sonda receiver only, you need a transmitter to work with it. If you don’t have a transmitter, please check our store for the transmitter.

Specification:

Frequency

512HZ

Power source

6 AA Alkaline Batteries

Battery life:

30-40 hours

Size

512X110X118mm

Controls

On-Off/Sensitivity,Near/Far toggle switch

Outputs

Signal strength meter,speaker,earphone,battery indicator

Getting to Know your Tools The best place to practice is above ground where you can see how the receiver responds to the location and position of the transmitter. You may be surprised at what you see. Better to be surprised when you have plenty of time to learn and nothing is at stake! Do your practicing in a place where you have plenty of room to move around-inside in a large room, or outside on the ground. Turn on a transmitter and toss it on the ground. Walk away from it further than its range and turn on the receiver. Set the switch to”Far”and turn the sensitivity up all the way clockwise. You may hear some noise but the meter should sit at the far left with no distinct signal. First lets take a look at the battery indicator. Now walk around randomly, holding the receiver level,at waist height, toward the general direction of the transmitter, slowly sweeping the receiver back and forth. As you point toward the direction of the transmitter,the signal will get louder and the meter will begin to rise. Try to maintain a meter reading in the center of the scale.Turn the sensitivity down as needed to keep it in this range as you get closer. When youre unable to keep the meter below full scale, flip the switch to “Near”.keep moving in the direction that makes he signal stronger.When you have reached the point that the signal seems to be strongest, and any direction you move makes it weaker, mark that spot) directly below the center of the antenna rod). Move to another place and seek this peak signal again and see if you always come back to the same spot. You should find yourself right over the transmitter each time. If you dont, keep practicing until you get consistent results.

USD 350.00/pieceUSD 190.00/pieceUSD 135.00/pieceUSD 150.00/pieceUSD 500.00/pieceUSD 200.00/pieceUSD 180.00/piece

Credit cards are welcome through our We also accept bank account deposit/transfer. Please make the payment due within 2 business days after you win the item.

Return / Exchange / Warranty Terms and Conditions
– All returns must email.

– Contact * for a Return Merchandise Authorization. Approved warranted items will be replaced/repaired immediately with the same merchandise, or similar item of our choice.

– Items returned that were abused will have to be approved by our warranty department for exchange. If we no longer carry the item that was returned due to a defect, we will send a working comparable item of our choice.

– Shipping is always non-refundable. The return has to be made within 7days of the receive date.

Overstep is the best wholesell agent for Pipe camera in China market,

after your finish the order,

please can contact with us,and we have and

and to teach you how to repair your camera in your country to avoid send back to China!

as underwater will be repair 1-2years,maybe damage,maybe camera put in water,also we can help you repair if you order from our agent or from other seller,ofcourse we will charge money,if your order from us directlly,please keep contact with us and

with =

your will get 2 years warranty and wholelife upgrade soft free support!
