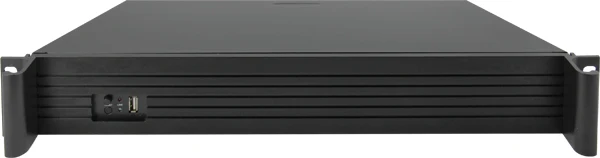

36CH 4K/5MP/1080P 4HDD NVR

Key Features:

• P2P cloud service, including cloud connecting, cloud monitoring, cloud transmitting to access IPC and NVR

at any time and any place

• Support Onvif protocol, support High profile S, High profile G, compatible with different IP camera that based

on Onvif, RTSP standard

• Support for H. 265 encoding format streaming access and decoding output;

• Support megapixel HD network video preview, storage and playback;

• Support search, playback and backup by event;

• Support all channel image display on one screen at same time, support 4 channels’ image display by mainstream,

and 4 channels playback;

• Support monitor PTZ on preview mode

• Offer CMS for free

Model Number


Operating System

Embedded LINUX operating system

Image Code Control

Image code quality adjustable, variable bitstream and constant bitstream optional

Dual Stream

Each channel can set main stream and sub stream

Video Standard


Monitoring Image Quality

4K / 5MP / 3MP / 1080P / 960P / 720P

Image Motion Detection

Each screen can set multiple detection areas and set 6-level sensitivity

Recording Playback Quality

Any 4ch 4K playback/ 9ch 5MP playback /16ch 1080 playback simultaneously

Region Cover

Every channel can set 4 cover regions(IPC Support)

Recording Mode

Support manual , auto, dynamic detection, alarm trigger record mode

Backup Way

Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup

(Partly needs IPC Support)

Operation Way

Mouse, Keyboard

Local Login

Username and password

Recording Storage

Local HDD, network

External Ports

Video Input

36×(3840*2160)+sub[960*576]+4Ref.+4Play H.265 8M/ch 36ch 4K IP Camera

36x(2592*1944)+sub[960*576]+4Ref.+9Play H.265 8M/ch 36ch 5MP IP Camera

36x(1920*1080)+sub[960*576]+4Ref.+16Play H.265 4M/ch 36ch 2MP IP Camera

Audio Input

36ch network audio input

Video Output

1ch VGA+1ch HDMI

Audio Output

1ch RCA output


1 RJ45,10M/100M/1000M self-adaptive LAN port

RS485 Port

Full duplex standard 485 port


1USB 3.0 port, 2 USB 2.0 ports

Alarm Input


Alarm Output






4 SATA HDD ports

MAX Capacity

Each port supports MAX 4TB HDD

Mobile Surveillance

Support( iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone

Power Supply


Power Consumption

≤25W(without HDD)

Working Temperature


Working Humidity



Equipment: 440×360×70mm, Packing: 460mm×135mm×560 mm

Weight(without HDD)

N.W.: 5.7Kg; with packing: 6.9Kg

Outside Carton

4pcs/carton. 480mm×560×575mm; weight: 30Kg

Installation Way

Desktop Installation
