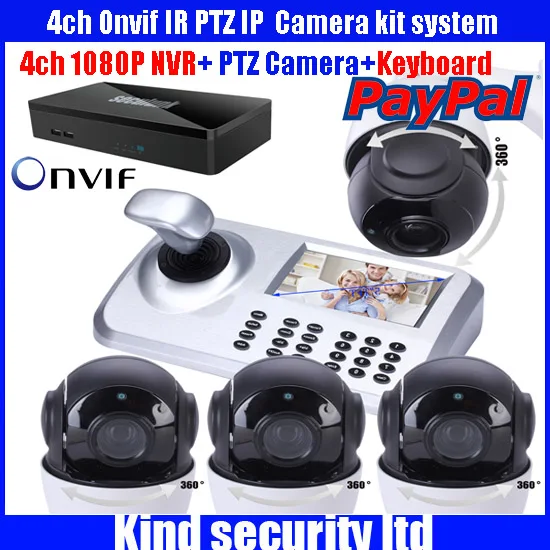

4pcs 960P 130W Middle speed PTZ IR onvif ip camera kit with 5.0″ HD LCD Display Network PTZ Joystick Keyboard Controller

4pcs 960P 130W Middle speed PTZ IR onvif ip camera kit with 5 0 HD LCD
Click to see details
4pcs 960P 130W Middle speed PTZ IR onvif ip camera kit with 5 0 HD LCD
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $980.00 / piece
Sale price:  US $931.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

4ch 960P 130W High speed PTZ IR onvif ip camera kit with 5.0″ HD LCD Display Network PTZ Joystick Keyboard Controller

5inch LCD IP PTZ Keyboard control IP High Speed Dome Camera 3D Joystick 5.0″ HD LCD Display Network PTZ Keyboard Controller

This network control keyboard is a powerful three-dimensional with multi-function , Easy to operate, no need to make any setting,plug and play; powerful hardware decoding capabilities, the first to achieve industry IP dome unlimited access for large safe City projects, support 5.0 “LCD LCD HD real-time display; Support HDMI output to achieve the main console screen and control equipment screen salvo (comes matrix switching function), reducing installation costs!

To support ONVIF2.4, back-end PTZ not restricted by manufacturer , wide compatibility, with PTZ tour, A-B scan, 360°, pattern and so on functions. Production Feature 1. Supports Tour,360 Scan and A-B Scan and so on function ; 2. To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug, without any set, automatically add and allocate IP address by keyboard; 3. Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively; 4. Chinese and English switch ; 5. To support USB. HDMI interface output, can be realize main screen picture any switch on control board; 6. To support 5.0”HD LCD , real display image on control device;

Interface 1 RJ45, 2 RS485( reserved ), 1 DC12V, 1HDMI output, 1 USB port
Ambient Temp. -20°~55°
Power Supply DC12V/2A
ONVIF ONVIF2.4
Joystick Three-dimensional joystick
Language Chinese/English
Access Device No. No upper limit(display by single picture)
Image Switch Mode Serial number or mouse
Product Size 260mm*160mm*48mm
Weight Gross: 1.52KG / Net:1.0KG
Carton Size 300mm*210mm*160mm

Product Introduction

1) Precision motor-driven, responsive, smoothly operation, the precision deviation less than 0.1 degree.

2) 1.3MegaPixels, 1/3” CMOS, 20X optical zoom, support ONVIF protocol.

3) Support TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP Protocols.

4) Support lightning protection, anti-surge, anti-surge function.

5) Outside weather-proof level up to IP66

6) Support mobile phone Android, iPhone OS view app:cloudlens

7) Support PC HCMS Client OR Standard Browser IE/Firefox/Google Chrome view

Features

1)6 PCS high-power infrared lights, no flashlight effect , IR distance 40-80 m.

2)360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area

3)Max. pan preset speed of 200°/s and max. tilt preset speed of 30°/s

4)Pan keyboard speed 0.6°~180°/s, tilt keyboard speed 3.5°~30°/s.

5)Support 220 preset, support 8 patrols, each patrol can contain up to 32 presets;

6)Support 4 patterns, can totally record up to 10 minus.

7)Support scan between two presets, area limited.

8)Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom

multiples

9)Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of

inactivity (contain the idling condition after the power supply has been turn on)

meter with waterproof case

6pcs LED light for 50m-80m IR light vision!

Lens

Focal Length:

4- 80mm,20X optical zoom,day vision 500m

Zoom Speed:

Approx.3s(Optical Wide-Tele)

Angle of View:

68.5 ~ 4.2 degree (Wide-Tele)

Min. Working Distance:

10mm ~ 1,000mm (Wide-Tele)

Aperture Range:

F1.6 ~ F 2.8

Pan/Tilt

Pan / Tilt Range:

Pan: 360° endless; Tilt: -0° ~ 90° (Auto-Flip)

Pan / Tilt Speed:

Pan Speed: 0.6° ~ 200° /s,Tilt Speed: 3.5° ~ 30° /s

Proportional Zoom:

support

Number of Preset:

220

Patrol:

8 patrols, up to 32 presets per patrol

Park Action:

Pattern / Pan Scan / Tilt scan / Random scan / Frame scan

Network

Ethernet:

10Base-T/100Base-TX, RJ45 connector

Max. Image Resolution:

1080x 960

Frame Rate:

60HZ:30fps(1280×960 ) 60HZ:30fps(1280×1080)

Image Compression:

H.264/MJPEG

Protocols:

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP,

SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP,

ICMP, DHCP, PPPoE

Simultaneous Live View:

Up to 6

Streams:

Dual Streams

User/Host Level:

Up to 32 users,3 Levels: Administrator, Camera control,

Live view only

Security Measures:

User authentication (ID and PW)

Host authentication (MAC address)

Integration

Application programming:

Open-ended API, support Onvif, PSIA and CGI

Web Browser:

IE 7, IE 8, IE 9, Chrome 8+, Firefox 3.5+, Safari 5+

General

IR distance:

40m-80m

RS-485 Protocols:

Pelco-P, Pelco-D, self-adaptive

Working Temperature:

12VDC: -20°C~60°C

Humidity:

90% or less

Protection Level:

TVS3000V lightning protection, surge protection and

voltage transient protection, weather proof: IP66

Package Dimension:

265*250*210mm

Weight (approx.):

2.28Kg

Camera Weight:

1.47kg

Mount Option:

Wall mount,

Power:

DC12V/2A

Horizontal 360 degree Vertical 180 degree All Direction Monitor

36X Optical Zoom (High Speed Auto Focus)
Wider surveillance possible by using the 36X optical zoom with high speed auto focus

Please touch this link!

also we will send you 4ch 1080P Onvif NVR

Package:

*1 X PTZ speed dome IP Network Camera with Aluminium Housing
*1 X Power Adapter(AU, EU, UK and US plug available for selection)
*1 X Wall Mount bracket or ceiling for choice.
*1 X User Manual
*1 X CD

we have 3 style bracket for your select
