Car Alarm System Keyless Entry Engine Start Stop With Push Button Start Smartphone App Remote Control For AUDI Q7 06-15
Functions of the car alarm system for audi:

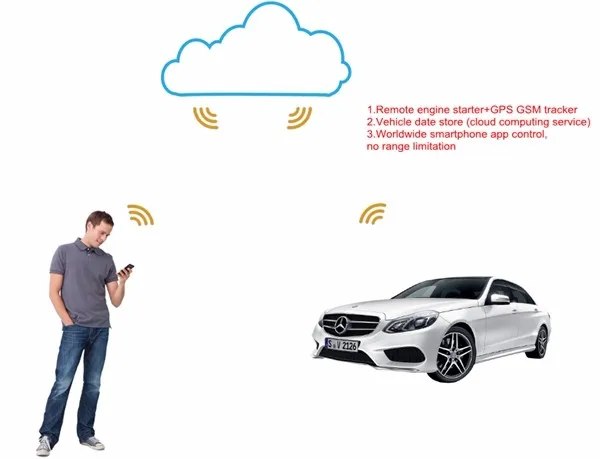

1. Keyless go by smartphone: ( no need destroy your original car key, for car with push start button or engine start stop button)
you can drive car without car key by yourself, or you can authorize other person to use your car by smart phone.
2. keyless entry(need add extra fee for this function)
3. remote engine start by car key or by smartphone
4. remote engine off by car key or by smartphone
5. car lock
6. car unlock
7. car location
8. gps tracking
9. car historical tracking playback
10. window close/windows down
11. trunk release
12. car status feedback
if car unlock or windows open , it will give you feedback.
13. car secretary with car care information
Never forget to take your car to have maintenance or care in time
Packaging & Shipping

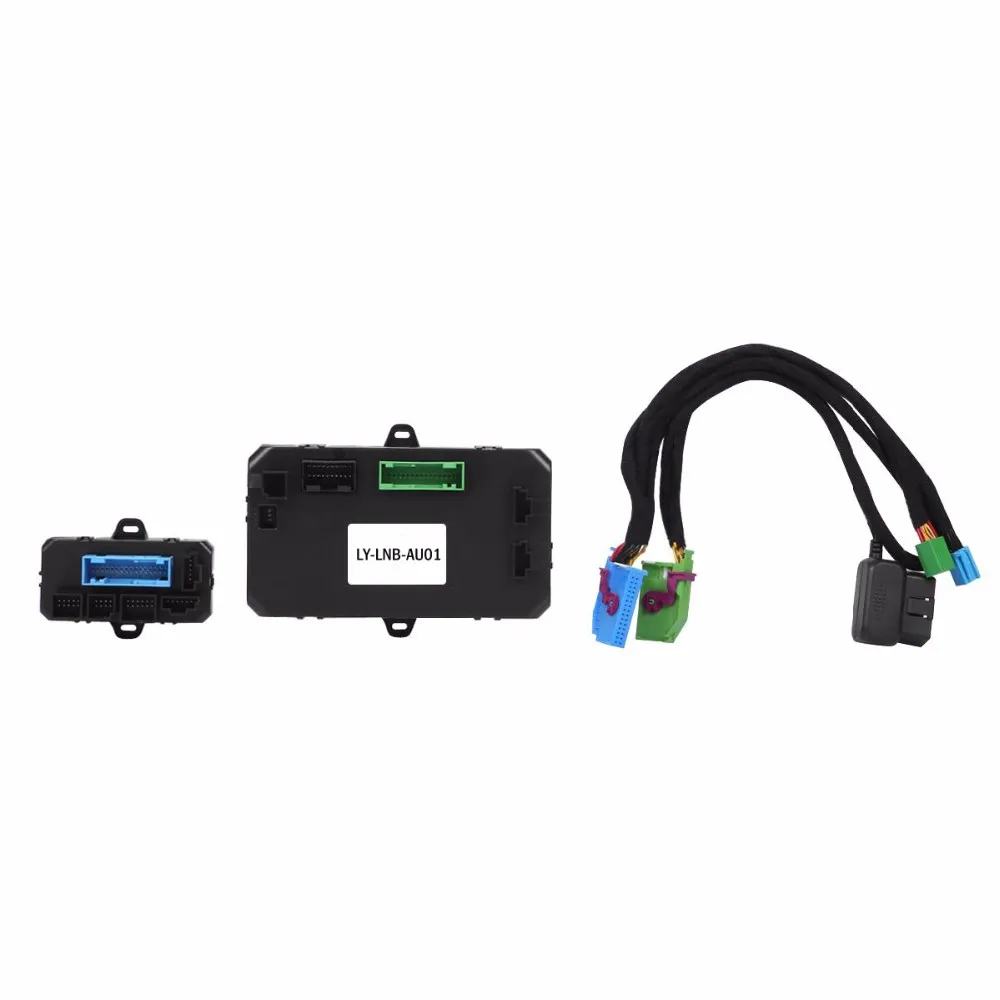

Host
3 general converter boxes
Wiring harness
Manual
Warranty card
Certification card
Notice please: this remote control module is exclusive for audi, if you want for other model, like benz, bmw, toyota… welcome to contact us for details. And tell us your car VIN( 17 numbers), so we can confirm which product model will fit your car. Demo Test is available, just contact us for car connection. QR Code for phone application. How To Install: 1.open the left and right folder cover of the steering wheel
2.pry open the left side of the plaque, remove the screw inside.
3.Remove the screws on the bottom panel
4.pull the plaque on the bottom, unplug the plug
5.pull up the cloth of the gear lever (note the slot position)
6.pull up the hanging block plate(notice the card slot position)
7. remove the screws below
8.pry open audio host panel
9.remove the audio host
10.remove the key induction coil
11.open the cigarette lighter trim, pay attention to remove the air conditioning template first, wiring harness go from the ashtray below
12. pull out the push start button plug from the original car.
13. connect the above plug to our 3 line cable
14. then connect our 3 line cable to original car push button panel
15. plug out the D2 key sensor coil
16. then connect the unplugede plug above to our 3 line cable
17. and then connect our three-way plug into the key induction coil
18. remove the J519 shield
19.unplug the J519 C yellow plug
20.plug the yellow plug into our 3 line cable.
