Concealed IP Camera DS 2CD6412FWD 20 960P PoE Camera with 3 7mm Lens 2m Cable WDR
Click to see details
Concealed IP Camera DS 2CD6412FWD 20 960P PoE Camera with 3 7mm Lens 2m Cable WDR

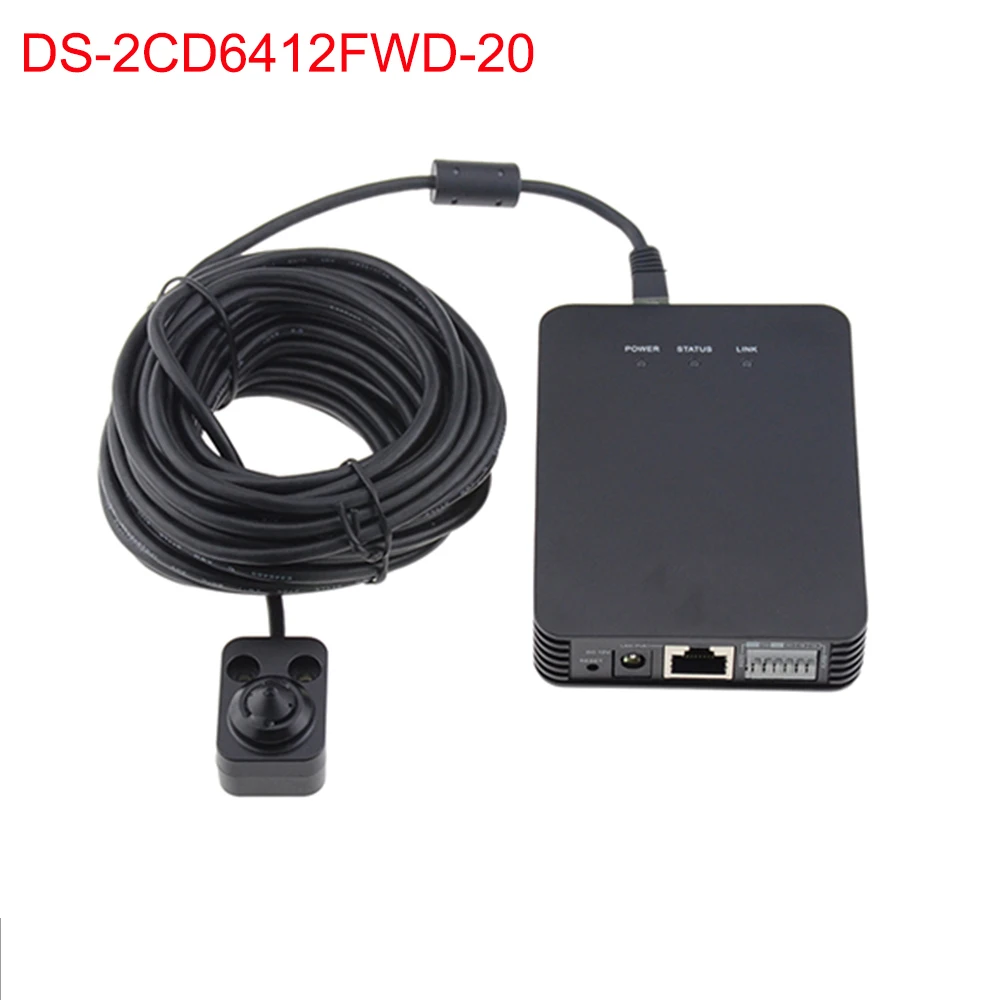

Concealed IP Camera DS-2CD6412FWD-20 960P PoE Camera with 3.7mm Lens 2m Cable WDR Pinhole CCTV Camera

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $169.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller


USD 159.00/pieceUSD 125.00/pieceUSD 135.00/pieceUSD 115.00/pieceUSD 132.00/pieceUSD 450.00/pieceUSD 269.00/piece DS-2CD6412FWD Concealed IP Camera 960P PoE Camera with 3.7mm Lens 2m Cable WDR Pinhole CCTV Camera


1.3 MP WDR Pinhole Covert Network Camera

Lens: 3.7mm with 2M cable


Original and Genuine from Hik

Up to 1280 x 960 High Resolution at 30 fps

Full HD720p Video
Smart Codec
120 dB WDR, 3D DNR
Triple Streams
EIS (Electronic Image Stabilization)

Note:The camera is not included the power adapter. Please don\’t update the camera.


Image Sensor: | 1/3″ Progressive Scan CMOS

Min. Illumination: | L20: color: 0.04 lux @ (ƒ/2.3, AGC on)

Shutter time: | 1 s to 1/100,000

Lens: | L20: 3.7 mm@ ƒ/2.3, angle of view: 57°

Lens Cable Length: | Optional 2 m or 8 m

Day& Night: | Electronic

Wide Dynamic Range: | 120 dB

Digital noise reduction: | 3D DNR

Compression Standard

Video Compression: | H.264/MPEG4/MJPEG

Video bit rate: | 32Kbps~16Mbps

Audio Compression: | G.711/G.722.1/G.726/MP2L2

Triple Streams: | Yes


Max. Image Resolution: | 1280×960

Frame Rate: | 30 fps (1280 × 960, 1280 × 720)

Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

BLC: | Yes, zone configurable

HLC: | Supported

Smart Defog: | Supported

EIS: | Supported (first channel)

ROI: | Supported

3D DNR: | Supported

Picture Overlay: | Supports 128 × 128 size BMP with 24-bit depth image overlay, zone optional

Day/Night Switch: | Electronic


Network Storage: | Micro SD/SDHC/SDXC card (128G), NAS(NFS, SMB/CIFS), edge recording

Alarm Trigger: | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception



Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask

System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI


Audio Input: | 1-ch 3.5 mm audio interface, MIC IN/LINE IN

Audio Output: | 1-ch 3.5mm audio interface (line level, 600 Ω)

Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface

Alarm Input: | 1

Alarm Output: | 1

On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Smart Feature-set

Line Crossing Detection: | Cross a pre-defined virtual line

Intrusion Detection: | Enter and loiter in a pre-defined virtual region

Region Entrance: | Enter a pre-defined virtual region from the outside place

Region Exiting: | Exit from a pre-defined virtual region

Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials

Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display.

Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection

Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)


Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)

Humidity 95% or less (non-condensing)

Power Supply: | 12 VDC ± 10%, PoE (802.3af)

Power Consumption: | Max. 6.5 W

Dimensions: | 78 mm × 105 mm × 32 mm (3.07″ × 4.13″ × 1.26″)

Weight: | Main body: 210 g (7.41 oz)

Cylindrical lens: 113 g (2 oz), 233 g (8 oz)

L-shaped lens: 99 g (2 m), 220 g (8 oz)

Tube lens: 129 g (2 oz), 242 g (8 oz)

Package + accessories: 224 g (7.9 oz)

NOTE: | -C2: Base Camera Body Unit (no lenses included)

-L10: Cylindrical Lens

-L20: L-shaped Lens

-L30: Tube-shaped Lens

*Different brackets included for each sensor unit.
