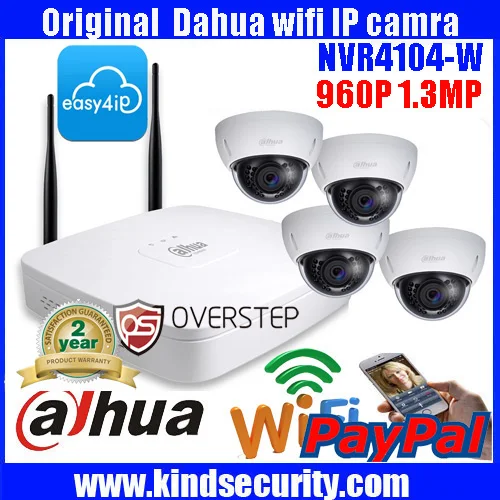

DAHUA 4ch wireless WIFI P2P NVR 4104-W with 4pcs 960P Original Dahua Easy 4 ip cloud support wifi dome camera DH-IPC-HDBW1120E-W

DAHUA 4ch wireless WIFI P2P NVR 4104 W with 4pcs 960P Original Dahua Easy 4 ip
Click to see details
DAHUA 4ch wireless WIFI P2P NVR 4104 W with 4pcs 960P Original Dahua Easy 4 ip
80 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $419.00 / piece
Sale price:  US $398.05 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


DAHUA 4ch wireless WIFI P2P NVR 4104-W with 4pcs 960P Original Dahua Easy 4 ip cloud support wifi dome camera DH-IPC-HDBW1120E-W

>Easy installation, plug&play
>Support P2P, allowing easier home applications
>Support WPS, make easier connection
>H.264 dual-stream video compression
>HDMI/VGA simultaneous video output
>All channel 720P recording
>Multiple network monitoring: web-browser, smart phone/tablet app

DAHUA 4ch Smart 1U WIFI P2P NVR with Original English Firmware without Logo The Latest Model NVR4104-W


> Up to 4 channel IP camera inputs
> H.264/MJPEG dual codec decoding
> Max 80Mbps incoming bandwidth
> HDMI/VGA simultaneous video output
> All channel synchronous realtime playback, GRID interface
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.
> ONVIF Version 2.3 conformance
> 3D intelligent positioning with Dahua PTZ camera
> Support 1 SATA HDD up to 4TB, 2 USB2.0
> Support WPS one-key add
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS) &Smart Phone(DMSS)


Model NVR4104-W
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video& Audio
IP Camera Input 4 channel
Two-way Talk 1 channel Input, 1 channel Output, RCA
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Compression H.264/MJPEG
Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Record Rate 80Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection
Trigger Events Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Ethernet 1 RJ-45 port (10/100Mbps)
Wireless Network Built-in Wifi module, 2 WiFi Antenna
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128 users
Smart Phone iPhone, iPad, Android, Windows Phone
Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface
USB 2 ports (2 Rear),USB2.0
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10°C~+55°C / 10%~90%RH / 86~106kpa
Smart 1U, 205mm×205mm×40mm
Weight 0.5KG(without HDD)

>1/3” 1.3Megapixel progressive scan CMOS
>H.264&MJPEG dual-stream encoding
>Max 25/30fps&1.3M (1280×960)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>3.6mm fixed lens (2.8mm optional)
>Max. IR LEDs Length 30m
>IP67, IK10
>Micro SD card slot, up to 128GB
>Easy4ip cloud support
>Wi-Fi support

Model DH-IPC-HDBW1120E-W
Image Sensor 1/3” 1.3Megapixel progressive scan CMOS
Effective Pixels 1280(H) x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0. 1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
Video Output N/A
Camera Features
Max. IR LEDs Length 30m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Focal Length 3.6mm(2.8mm optional)
Max Aperture F2.0(F2.0)
Focus Control Manual
Angle of View H: 72°(92°)
Lens Type Fixed lens
Mount Type Board-in Type
Compression H.264/H.264H/H.264B/MJPEG
Resolution 1.3MP(1280×960)/720P(1280×720)/ VGA(640×480)/QVGA(320×240)
Frame Rate Main Stream 1.3MP/720P(1 ~ 25/30fps)
Sub Stream VGA/QVGA(1 ~ 25/30fps)
Bit Rate H.264: 32kbps-8192kbps
Corridor Mode Support
Compression N/A
Interface N/A
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n)
50m(open field)
Compatibility ONVIF, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD card, up to 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
Power Supply DC12V
Power Consumption <4.6W(IR on)
Working Environment -30°C~+50°C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance IK10
Dimensions Φ110mm×81mm
Weight 0.55kg with package




The installing process should be fairly easy to do, even for the inexperienced. I will try to explain how to get this camera up and running. First connect the camera to your router, after that you need to use a configuration tool to change the default IP address with one that will work with your network.

To do this open up the included CD and open the folder named Tools then Config tools and inside there should be 2 files, one instruction manual and one .rar file. Unpack the .rar file and run the ConfigTool.exe file.

Press refresh and the software will find your camera and allow you to change the IP address. Remember that the default password and user-name is admin, you will need to change this later for security reasons to something memorable. You can also change PPOE from here.

When you have done the above steps you should now be able to access the camera by typing your IP address into your browser. Log in with Admin as both the user-name and password. Now you can change any settings you want for the camera.

Go to set-up menu and here you can do any changes you want. There are three different pre-set profiles Day, Night and Auto. By default everything is set at auto and brightness, contrast, saturation and sharpness are all set to a value of 50.

Play around with the settings here for both day and night to see which gives you the best image quality. Daytime works fine with all settings at default but for night time you may need to tweak it a little to find the best settings for your conditions.

For remote viewing with mobile devices use the included software called DMSS, available for Android, Apple, blackberry, Symbian and Windows operating systems. It also comes with a software called PSS (Pro Surveillance System) which we took a closer look at.

After youve installed it and opened it up you need to add your camera(s). Open up device manager, press the search device button and after its located your camera click add management.

This is how the alarm recordings shedule looks like.

Lets have a look at the image quality. This is a daytime image taken at late evening with all settings by default so it is a little dark, I should probably have changed the brightness a bit, but I think the quality of this camera speaks for it self with this snapshot.

And heres a nighttime snapshot. As I said in the beginning of this review, we have about 25m from camera to the road in this test. As you can see in this snapshot, 25m is about maximum length if you would like to see any details in your recordings.

And also Playback

1.We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer some unbranded products(without DAHUA brand on the product) from 2015;some style will havebot dahua logo,please understand!

2. Please take note that our inventory is changing every day, so we cannot make sure what you order has stock. If you need the order urgently , please contact us before you pay. all dahua products we can send you in 15- 25days normally if we havenot stock ,If you cannot wait, please don’t place order;

3.All DAHUA products are with English version only. If you need to buy any other model which is not displayed in our shop, please contact with us;

4.Retail and wholesale customers are both welcomed. If you want to place quantity order, please contact with us;

5.For payment, we also accept T/T and Western Union. If you pay by T/T or Western Union, we will offer you 5% discount. Our online shop is mainly for retail and we will require you to pay by T/T or Western Union for order up to certain quantity;

6.For shipping, we set EMS by default but other shipping methods like DHL, UPS, FEDEX etc. are also available. You can just pay for the EMS shipping. We will evaluate which express is the best for your country and then use the best one if the cost you have paid is enough or similar. Or if you like any express company, please contact with us before you pay. The shipping cost charged by the system is not correct normally when you order different items together, so please remember to ask us to check the exact cost and revise price for you before you order;

7.For product warranty, we provide 2-year warranty period(since the date you receive the order). Shipping cost of returning the defective product will be borne by the buyer after 1 years later

8.If you have any question, please leave message to us. We will reply you as soon as possible;

9.Please confirm the delivery for us after you have received the order and everything is ok;

10.If you are satisfied with our product and service, please give us a good feedback . Cutomers who LOVEs opening dispute or giving bad feedback without appropriate reason are not welcomed.

and any clients have collect our website for the following QR Code we will send special gifts and more discount!
