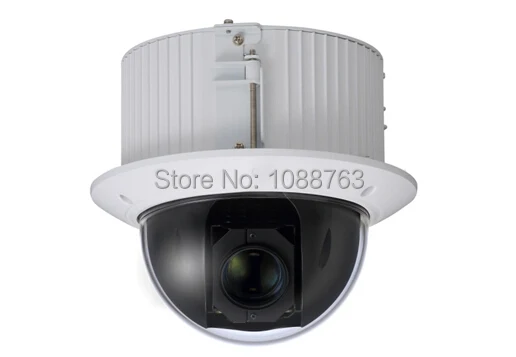

DAHUA CCTV Security Camera 2Mp HD 20x Ultra-high Speed HDCVI PTZ Dome Camera IK10 IP67 HD PTZ Camera without logo SD52C220I-HC

Thank you for your visiting our store. Please read the below notes carefully before you confirm the order in order to avoid any inconvenience.

1.We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer unbranded products(without DAHUA brand on the product) from 2015;

2.Please take note that our inventory is changing every day, so we cannot make sure what you order has stock. If you need the order urgently, please contact us before you pay. The production time for the models which we don’t have in stock will take 15- 25days normally. If you cannot wait, please don’t place order;

3.All DAHUA products are with English version only. If you need to buy any other model which is not displayed in our shop, please contact with us;

4.Retail and wholesale customers are both welcomed. If you want to place quantity order, please contact with us;

Thank you for your time! We are looking forward to your purchasing!

Model

SD50220I-HC

SD52C220I-HC

Camera

Image Sensor

1/2.8” Exmor CMOS

Effective Pixels

1920(H) x 1080(V)

Horizontal Resolution

≥1000TVL

Scanning System

Progressive

Electronic Shutter Speed

1/1 ~ 1/30,000s

Min. Illumination

Color: 0.05Lux/F1.4; B/W: 0.005Lux/F1.4;

S/N Ratio

More than 50dB

Resolution

25/30fps/1080P, 25/30/50/60fps/720P

Video Output

1-channel BNC HDCVI high definition video output

Camera Features

Day/Night

Auto(ICR) / Color / B/W

Backlight Compensation

BLC / HLC / DWDR (Digital WDR)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Noise Reduction

2D/3D

Privacy Masking

Up to 24 areas

Digital Zoom

16x

Lens

Focal Length

4.7mm~94mm (20x Optical zoom)

Max Aperture

F1.4~ F2.6

Focus Control

Auto / Manual

Angle of View

54.1° ~ 3.2°

Close Focus Distance

100mm ~ 1000mm

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°

Manual Control Speed

Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s

Preset Speed

Pan: 500° /s; Tilt: 500° /s

Preset

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan, Auto Scan

Speed Setup

Human-oriented focal length/ speed adaptation

Power up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period

Protocol

DH-SD, Pelco-P/D (Auto recognition)

Audio

Interface

1 channel In

Auxiliary Interface

RS485

1

Alarm

2/1 channel In/Out

General

Power Supply

AC24V/ 1.5A

Power Consumption

10W, 19W (Heater on)

10W

Working Environment

-40ºC ~ 70ºC / Less than 90% RH

-20ºC ~ 60ºC / Less than 90% RH

Ingress Protection

IP67, IK10

IK10

Dimensions

Φ186.0(mm) x 253(mm)

Φ198(mm) x 177(mm)

Weight

2.5Kg

2.2Kg
