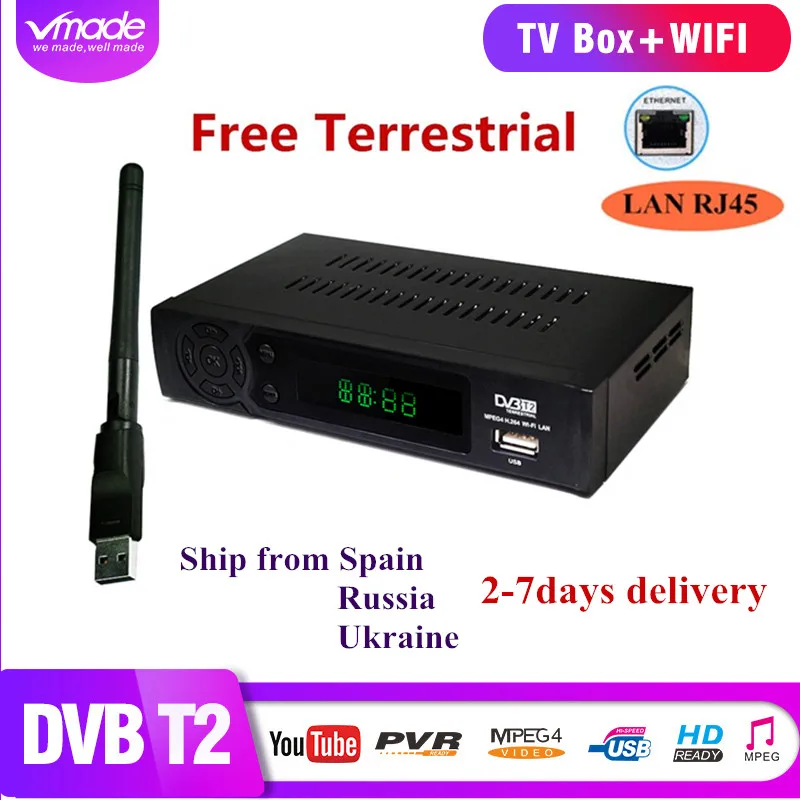

DVB T2 8939+USB WIFI H.264 FULL HD 1080P MPEG2 in terrestrial receiver DVB T2 tv tuner box set top boxes Tape network interface
This machine has a network interface on the back panel. RJ45 network port is worth having. Please take the time to place your order.
Main Features:
-Support Fully compliant with DVB-T2 standard
-Support teletext/subtitle/muti-language,Auto/manual program search
-Support Powerful and highly effective 7-day EPG function
-Support Youtube ,MEGOGO,PVR,Wifi
-Support terrestrial Receiver DVB-T / DVB-T2
-Support USB Wi-Fi Dongle MT7601
-Support RJ45 LAN，3D interface
-Supports HDMI output(1080P),AV, coaxial, RF in and output
-Support Compatible with 576i/576p/720p/1,080i/1080P video formats
-Support MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels)
NOTICE: Ship from Spain, the first two zipe code for the35,38,51,52 ,07 area,we can’t send the package , if really want to order ,please choose the “AliExpress Standard Shipping”.thanks.
| Memory | MSD7T00EZ built-in (32X16Mbit DDR2 Frequency1066) | |||
| Flash | 4MByte | |||
| Demodulator Type | MSD7T00E built-in Demodulator | |||
| TUNER | ALTOBEAM ATM 2040 | |||
| Front Panel | USB 2.0 Embedded One Host, | |||
| 4-digit LED display on front panel | ||||
| red LED Standby,green LED Lock | ||||
| Panel KEY, POWER, CH+ ,CH-,V-,V+,MENU,OK | ||||
| Rear Panel | Tuner RF input connector | IEC-162-2( Female) | ||
| Tuner RF Loop through connector | IEC-162-2( Male) | |||
| HDMI V1.4b | ||||
| RJ45 x1 | ||||
| AV4: CVBS AL AR Coaxial Connector x1 | ||||
| Power AC100~240V 50Hz/60Hz | ||||
| Demodulation | ||||
| Terrisal Receiver Standard | DVB-T2/T(EN_302755 V1.3.1/EN 300744) | |||
| Input RF Frequency | 48~866MHZ | |||
| Bandwidth | 6MHz,7MHz,8MHz | |||
| Constellation | QPSK 16-QAM 64-QAM and 256-QAM | |||
| FEC | 1/2, 3/5,2/3, 3/4,4/5,5/6 | |||
| Guard Interval | 1/128 1/32 1/16 19/256 1/8 19/128 1/4 | |||
| FFT Mode | 2K/ 8K/32K | |||
| Support | Support Single and multiple PLPS | |||
| Input level | -83 – -5dBm | |||
| Sortware Features | ||||
| •Fully comply with DVB-T/T2 and H.264, MPEG-4, MPEG-2 Standard | ||||
| •The maximum speed of the traffic flow of at least 50 Mbit / sec | ||||
| •Support 3D interface | ||||
| •Sleep Timer | ||||
| •Support teletext/subtitle/muti-language | ||||
| •Powerful and highly effective 7-day EPG function | ||||
| •AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen | ||||
| •USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||||
| •Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | ||||
| Network | ||||
| Network Application | online video , Weather | |||
| USB Wi-Fi Dongle | MT7601 | |||
| Decoder | ||||
| Video Decoder | Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile# Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
|||
| Audio Decoder | MPEG-1, MPEG-2 (Layer I/II), MP3, AAC-LC, | |||
| Powerful Multimedia Features | ||||
| MediaCodec | avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||
| Audio Codec | WMA,MP3,AAC (.wma,.mp3,m4a) | |||
| Photo Codec | JPEG, BMP, PNG | |||
| License | ||||
| Optional DTS, Digital Plus, RM/RMVB, Divx License. | ||||
| Accessories | ||||
| gift box | ||||
| AV cable | ||||
| DVB TV box | ||||
| IR remote control | ||||
|
User Manual |
||||
