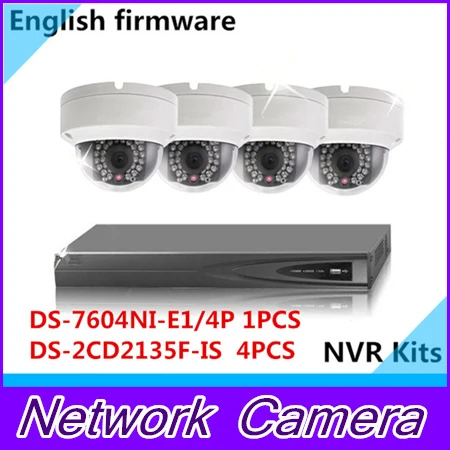

English DS-7604NI-E1/4P(4 POE) 1 piece + Multi-language DS-2CD2135F-IS (3MP POE) 4 pieces NVR Kit

English DS 7604NI E1 4P 4 POE 1 piece Multi language DS 2CD2135F IS 3MP POE
Click to see details
English DS 7604NI E1 4P 4 POE 1 piece Multi language DS 2CD2135F IS 3MP POE
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $555.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

DS-7604NI-E1/4P 1 pieces System Language: English

DS-2CD2135F-IS 4 pieces System Language: English

NVR:

Key Features
• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920×1080P resolution
• HDD quota and group management
• 4 independent PoE network interfaces

Video/Audio Input
IP Video Input: 4-ch
Two-way Audio: 1-ch RCA(2.0Vp-p, 1kΩ)
Video/Audio Output
VGA Output: 1-ch, resolution:
1920×1080P/60Hz,1600×1200/60Hz,1280×1024/60Hz,
1280×720/60Hz, 1024×768/60Hz
HDMI Output: 1-ch, resolution:
1920 × 1080P /60Hz, 1920 × 1080P /50Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720
/60Hz, 1024 × 768 /60Hz
Recording resolution: 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Audio Output: 1-ch RCA(Linear, 1kΩ)
Playback Resolution: 5MP /3MP / 1080P / UXGA / 720P / 4CIF / VGA / DCIF / 2CIF / CIF / QCIF
Synchronous Playback: 4-ch
Hard Disk Driver
Interface Type: 2 SATA Interfaces
Capacity: Up to 4TB capacity for each disk
External Interface
Network Interface: 1 RJ45 10M/100M/1000M adaptive Ethernet Interface,
4 independent 100Mbps PoE Ethernet interfaces
USB Interface: 2 USB 2.0 Interfaces
Serial Interface: 1 RS-485 interface (Reserved)
General
Power Supply: 100~240VAC, 47~63Hz, 3A
Consumption: ≤ 15 W (without hard disk)
Working Temperature: -10 °C ~ +55 °C
Working Humidity: 10%~90%
Chassis: 19-inch rack-mounted 1U chassis
Dimensions: 445 × 290 × 45mm (W x D x H)
Weight: ≤ 2 Kg (without hard disk)

IP CAMERA

• 3 megapixel (2048 x 1536) resolution • Full HD1080p real-time video • DWDR & 3D DNR & BLC • EXIR illuminator (up to 30m) • IP66 • PoE

Camera
Image Sensor: 1/3″ Progressive Scan CMOS
Minimum Illumination: 0.19 lux F2.0, AGC on
0 lux with IR
Shutter Time: 1/30s ~ 1/100,000s
Lens: 4mmF2.0, angle of view: 75.8
Lens Mount: M12
Day& Night: ICR
Digital Noise Reduction: 3D DNR
Wide Dynamic Range: Digital WDR
Backlight Compensation: Yes, zone configurable
Compression Standard
Video Compression: H.264/M-JPEG
H.264 Compression Profile: Main profile
Bit Rate: 32 Kbps~16Mbps
Dual Stream: Yes
Max Image Resolution: 2048×1536
Frame Rate: 60Hz: 15fps (2048 × 1536),30fps (1920 × 1080), 30fps (1280 × 720)
Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
Network
Network Storage: NAS
Alarm Trigger: Motion detection, tampering alarm
Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
System Compatibility: ONVIF, PSIA, CGI
General Functionalities (Security): User authentication, watermark
Interface
Communication Interface: 1 RJ45 10 M/100 M Ethernet port
General
Power Supply: 12 V DC ± 10%; PoE (802.3af)
Power Consumption: Max. 5.5W (7.5W with ICR on)
Working Temperature (Operating Conditions): -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Impact Protection: IEC60068-275Eh, 50J; EN50102, exceeding IK10
IR Range: Up to 30m
Dimensions: Φ 127 x 97.5 mm
Weight: 670g (1.5 lbs)
Ingress protection: IP66
EXIR range: up to 30m
Average Star Rating:
0 out of 5 (0 Ratings)
NameRatingFeedback
Shipping CompanyShipping CostEstimated Delivery Time
DHL3 - 7 days
UPS Expedited3 - 7 days
EMS5 - 14 days
Post Air MailFree Shipping15 - 45 days
Return PolicyIf the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.

N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
