Display Spec.
| Model | FW702HSD |
| Screen Size | 7″ IPS |
| Resolution | 1024×600 pixels |
| Aspect Ratio | 16:9 |
| Brightness | 600cd/m⊃2; |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Input
| 1 X BNC | SDI |
| 1 X HDMI | HDMI |
Output
| 1 X BNC | SDI |
| 1 X HDMI | HDMI |
Audio
| Audio Out | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC6~24V |
| Power Consumption | ≤9W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Unit Size | 194L×148H×28.5D mm |
| Unit Weight | 521g |
Advanced Features
| * Peaking Focus Assist(Red highlight over parts of the monochrome image in focus) |
| * Check Field (Red,Green,Blue,Mono) |
| * Camera Mode |
| * Pixel to Pixel |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%,2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Custom Color Temperature |

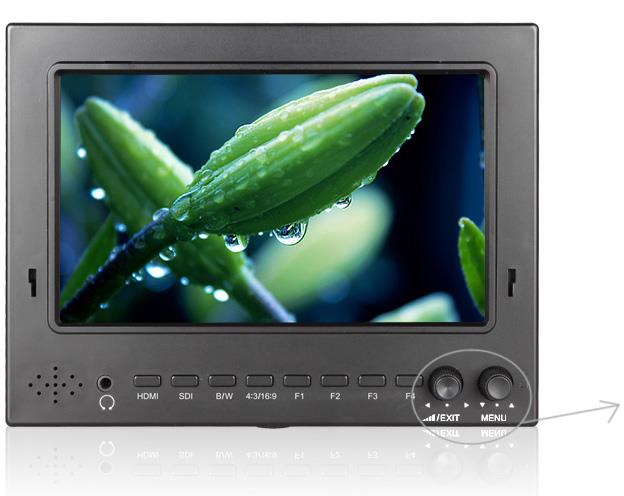

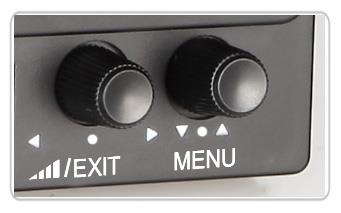

Innovation OSD Operation
FW-702HSD double function knobs are FEELWORLD’s exclusive technology feature, which will bring you more convenient and rapid operation feeling.

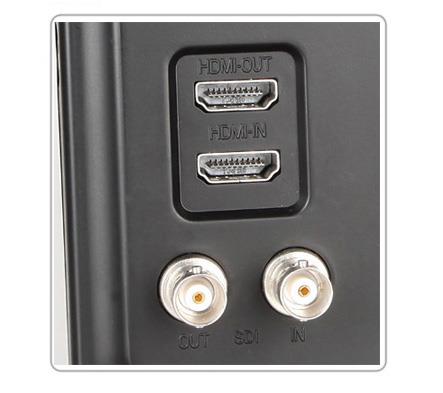

Input and Outputs
The FW-702HSD is with SDI and HDMI inputs and outputs. Since the monitor is all digital, it shows the purest and cleanest signal directly on the LCD panel. To remove the legacy analog inputs and circuits makes your image as clean as possible.

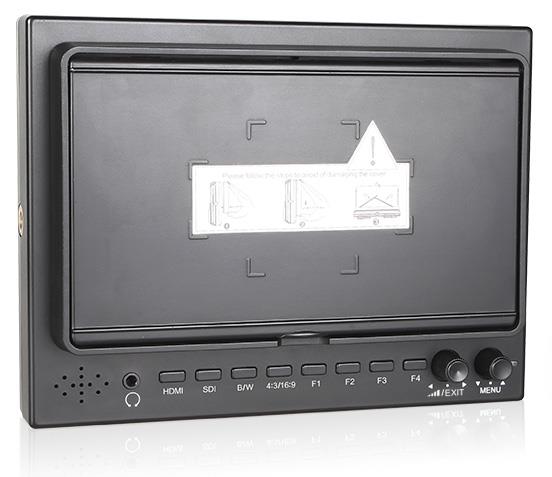

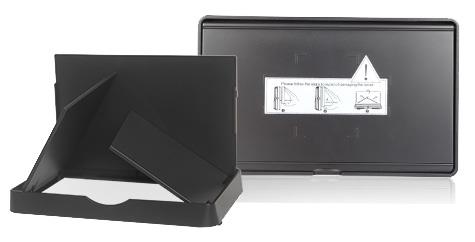

Foldable Sunshade
New extended screen hood, acquire ideal visual effect under almost all environments.
Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual
