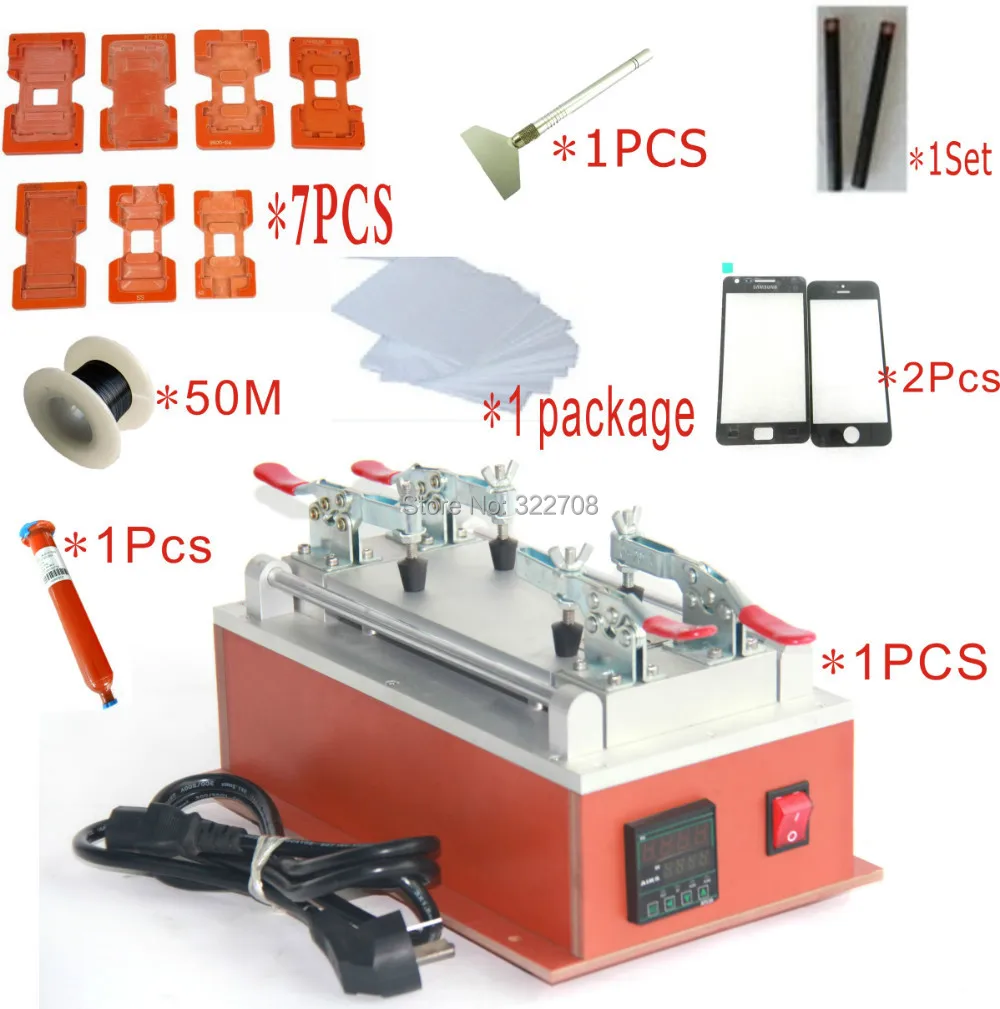

Free shipping LCD Separator Machine for Touch Screen Separator+UV glue+die + cutting line for Iphone / HTC / Samsung repair kit
HT-407 LCD separator
Machine size: 320mm*160mm*180mm
The heating area: 190mm*100mm
Voltage: 220V (110V can be customized)
Weight: 5.5 kg
Heating mode: constant
The temperature error: ± 0.1
Attention: 1. There are some risk of damaging touch screen or LCD. When you are a new beginer, you’d better practise your skill with some damaged LCD assembly. After mastering the skill, you can refurbish the LCD Asembly. Please practise your skill patiently and carefully. The success rate depend on your skill. 2. General speaking, it’s more easier to refubish original LCD assembly, and it’s more difficult to refurbish high copy LCD assembly. If you need, we can supply high quality original cell phone parts; 3. The instruction video is only for reference. You can share your experence with us. 4. To save your money and safely ship, we suggest that you can get UV Glue LOCA from local market. If you need from us, please visit our store and you can get it; 5. If you need various of molds, please visit our store and you can get them. Like the current main stream cell phones, Apple, Samsung and HTC,many new cell phones are made of display assembly. Since glass lens, touch screen and LCD are connected together, it is hard to separate cracked or broken screen by hand if happened.Always you have to take it to Depot for repairing. The cost is high and the time is long. Or you need purchase expensive equipment package, including separate machines, SMT machines,laminating machine and bubble removing machine. But now you can handle it easily. We have developed the machine and skills, it is unnecessary to buy expensive equipments and wide space for general repair shops. After mastering the skills, you can replace an old screen within 30 minutes and it looks like a new one. Now have one, and we are sure you can make money. 100% separate glass lens, touch screen, LCD and replace old, broken, cracked, damaged, faulty glass lens under correct operation.
Here we probably look at the display and touch screen integrated structure
Surface layer is a layer of mirror glass
Here is the surface layer of adhesive glue
Here is the glue bonding the touch screen layer
Touch the adhesive glue layer is below
Under that display the most.
The following is a graphic tutorial Apple 4 substitution mirror
Screen for the entire burst mirror technology needed tools include: separating machine (fixed screen separation) cutting line, curing lamps, UV glue, etc.
Time about ten minutes
First, before changing mirror, we must first test, the screen display is normal, if you can use the touch screen, even if you are skilled enough to touch the bad, but also from other display assembly to remove the bad touch good touch sheet change over .
First, the stent removed and then split on the platform.
The screen is fixed above the split-screen machines, heating, we can wait a few minutes after hands-split screen.
After the split is like this,
The next step is to clean the glue that above,
Clear after a good glue to put the pressure screen. First, the box with the original phone screen, then press the two methods, and second mold pressure screen. All OK
We have a dedicated electricity woodcut mold will not be so easy to hurt the screen, convenient and fast, it is recommended that you buy a dedicated mold to press the screen easy to use more, but can also be placed in the mold above except adhesive residue. Probably give you a look at the line. There are tutorials when bought.
Is not like new, huh, huh. Here is cured, cured well screen can be measured up.
Good measure. OK, the other screen is the same way, operations are the same, Samsung, HTC and so on.
Their work tools and materials needed, a separator, a curing light, UV adhesive glue, or use special adhesive die before the cell phone shell, cutting lines, cleaning cloth, brush, except you can use white oil and senior glue washer water. which cover still need to buy that kind of mirror glass.
Required tools and materials (We sell various types of dedicated otherwise bonded assembly of molds and mirror cover, curing lamps, UV glue adhesive screen, cutting lines. White oil, senior washer water environmentally friendly)
