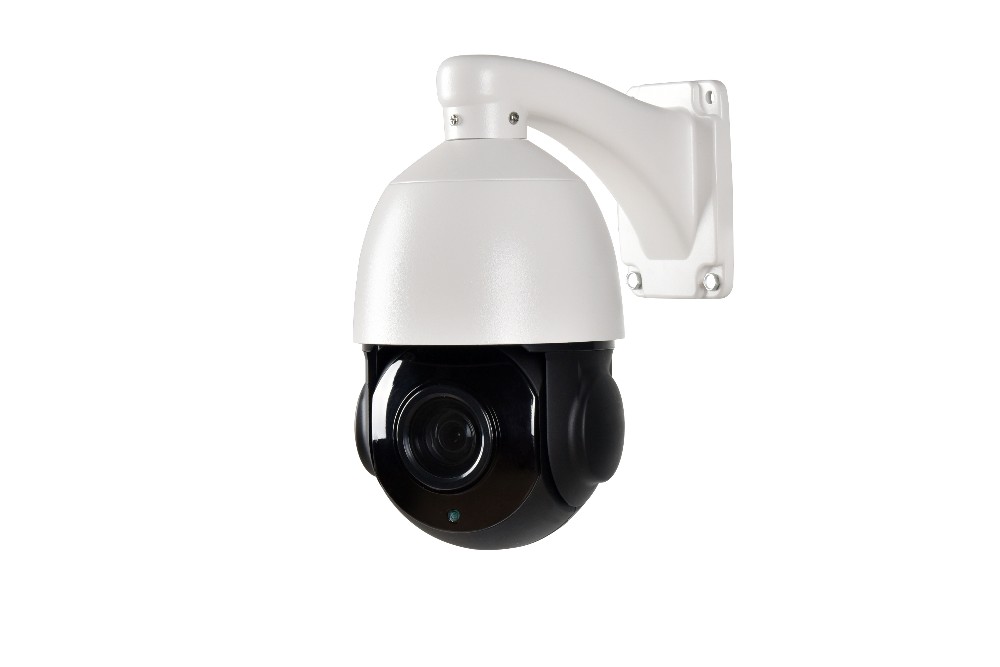

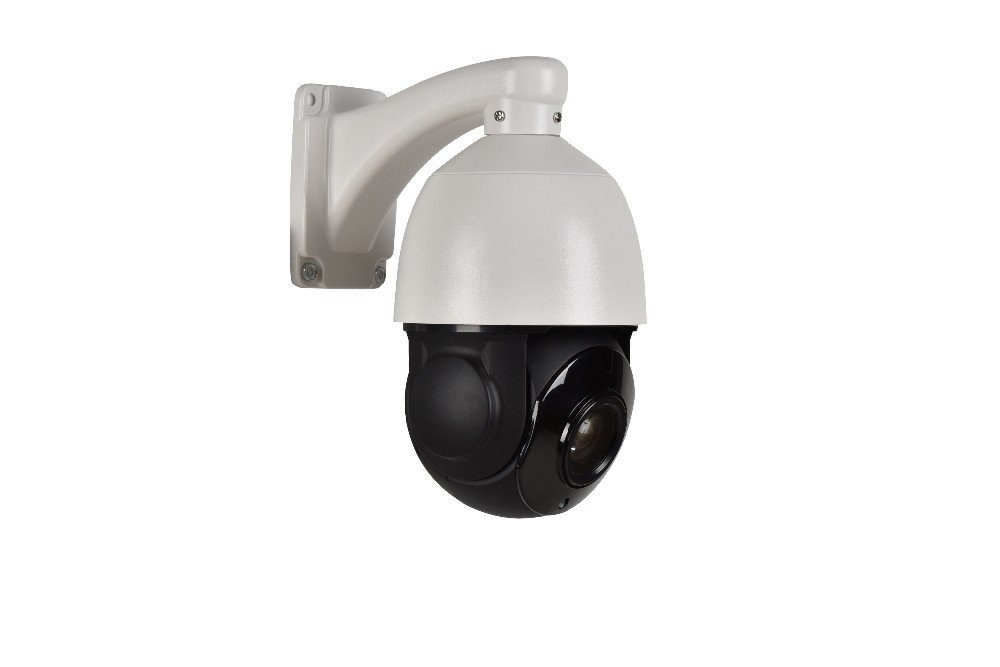

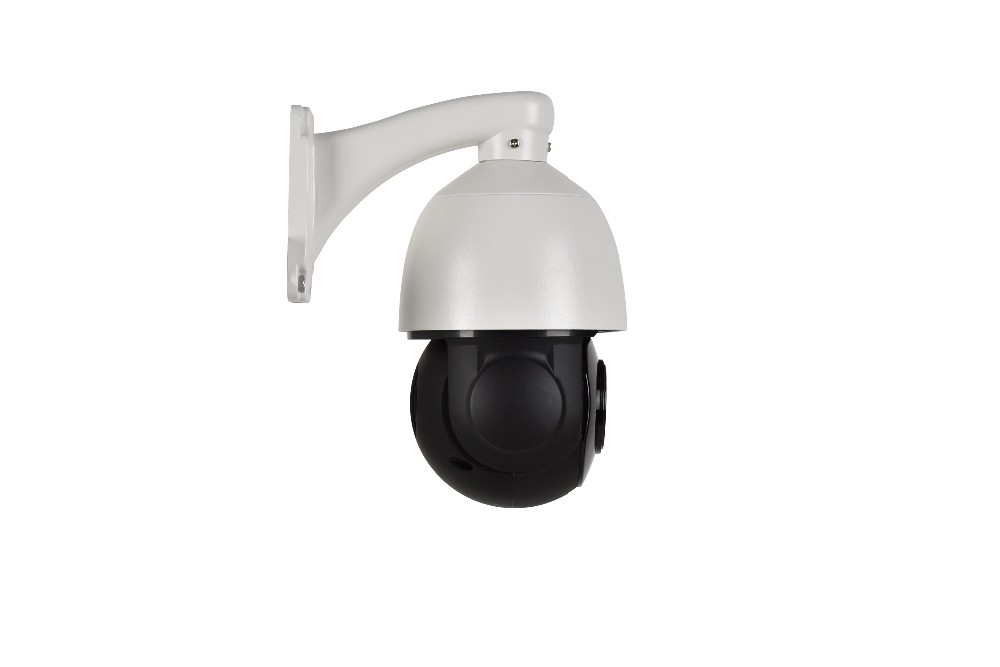

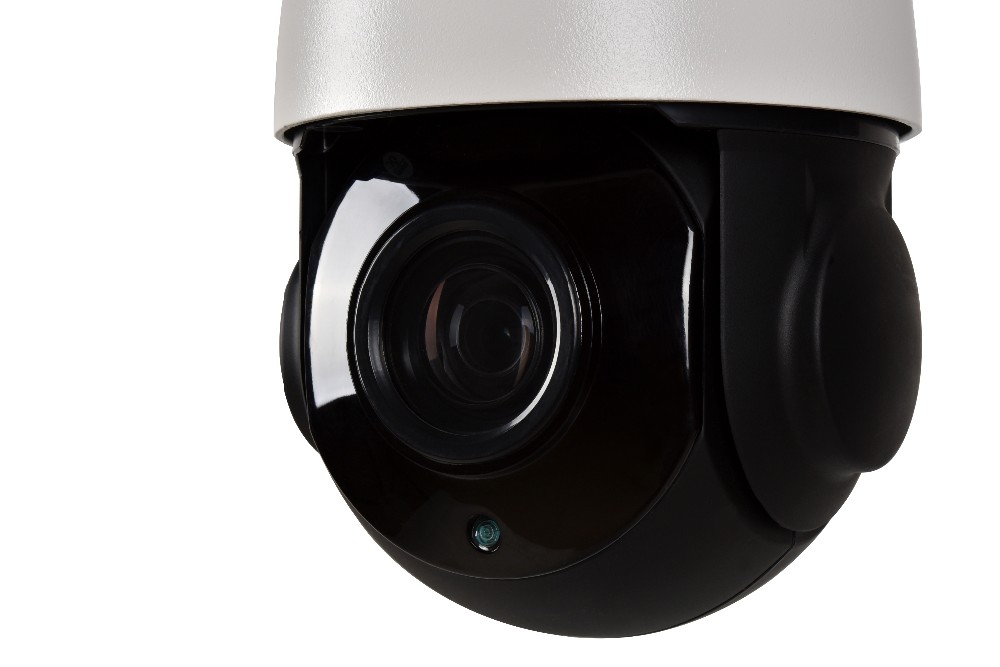

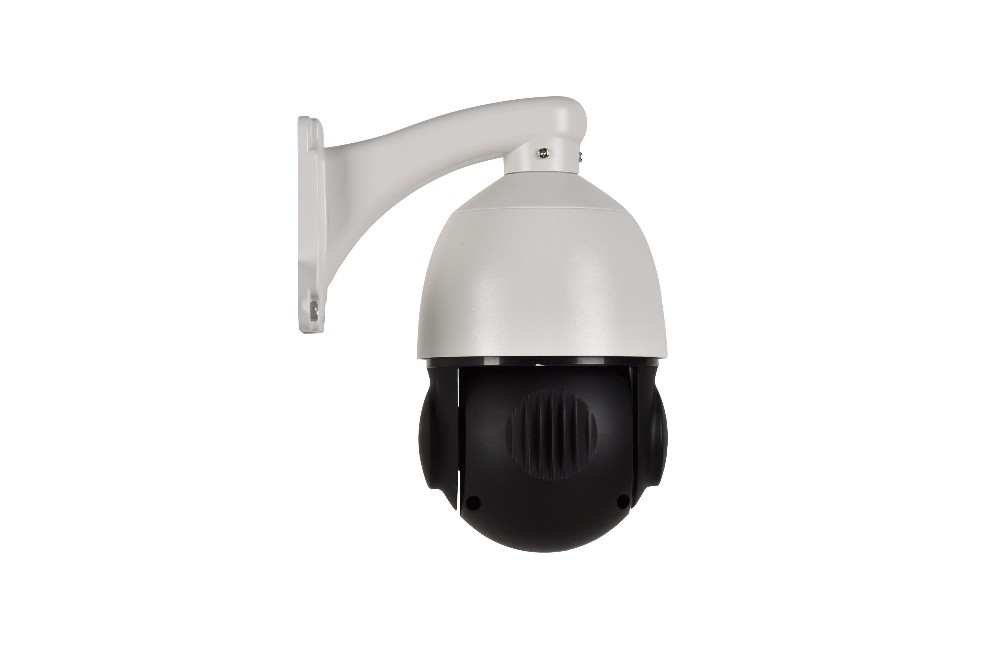

VIDEO DEMO: https://youtu.be/CStGpZ_ywsU (Youtube Select HD Player) H.265 New 5.0Megapixels MINI PTZ IP Camera Full HD 30x Zoom IP IR High Speed Dome CCTV Camera support P2P Tech for Smartphone CCTV Security
Key Features:

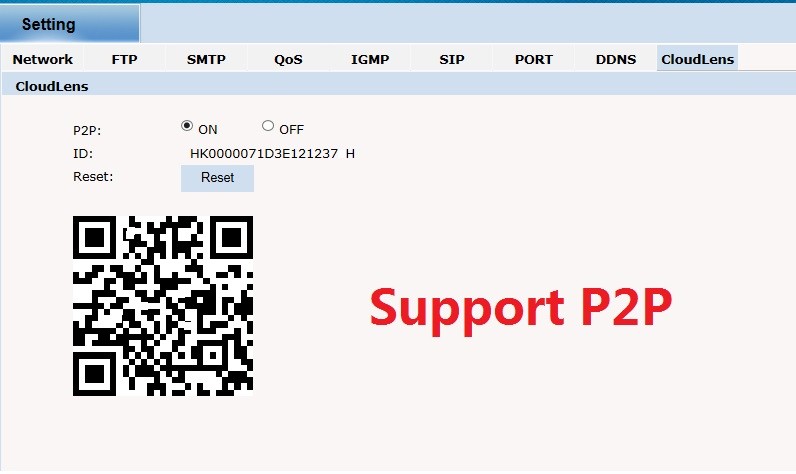

*4.5″ Total Metal body construction, IP66 rate protection *1/3″ CMOS, 4.0 Megapixels, 10X optical zoom *HD-IP digital interface output, 4.0MP high definition image *PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor *IR distance 50M *Support P2P function *OSD menu is available *ONVIF2.4 compatible; *Compatible with AXXON , Milstone software
|
Specification |
|
|
Camera |
|
|
Sensor |
1/2.8 5.0M OV4689 CMOS |
|
Total pixels |
5.0 Megapixels |
|
Output Pixel |

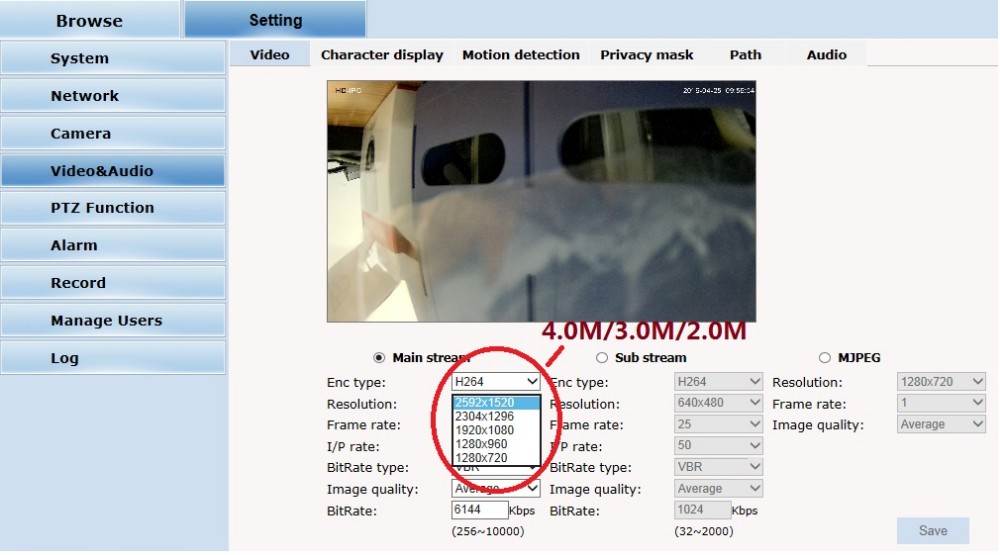

2304×1296 30fps 2592×1520 22fps 2592×1944 15fps |
|
Lens |
4.7~94mm,30X (20X Optical+ 10X Digital Zoom) |
|
Iris |
F1.6~F1.8 |
|
Min. illumination |
Color: 0.05Lux\\ B/W: 0.01Lux |
|
D/N |
IR-CUT |
|
AGC |
Auto/manual |
|
WB |
Auto/manual/indoor/outdoor |
|
Shutter |
1/2 – 1/20,000s |
|
S/N Ratio |
50dB |
|
Dome |
|
|
Communications Protocol |
TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P |
|
Software Control |
IE, CMS, Management Platform |
|
Mobile View(optional) |
Support Windows, iPhone platform smartphone |
|
Horizontal Rotation Speed |
0.02/s-45/s |
|
Horizontal Rotation Range |
360 |
|
Tilt Rotation Speed |
0.02/s-80º/s |
|
A-B Scan |
User programmable |
|
A-B Scan Speed |
1-9 levels setting available |
|
Dwell Preset |
1-60s interval available |
|
Preset Points |
220 |
|
Go to Preset Speed |
01-64 levels available |
|
PWR On Action |
Memory/Tour 1/360 scan/A-B scan/Preset 1-8/None |
|
Park Time |
01-60mins available |
|
Preset Points |
220 |
|
Guard Tours |
3 groups |
|
Guard Points |
Max.16 points, dwell time user selectable |
|
Operating temperature |
Indoor: 0~ +40 Outdoor: -40~ +60 |
|
Pan and Tilt position display |
Support |
|
Auto Control IR LED |
PWM |
|
LEDs |
Array 42Mil |
|
IR distance |
up to 50 meters |
|
Support ambient light detection |
IR illumination on 1-15 grades selectable; |
|
Humidity |
95% Non Condensing |
|
Power |
DC12V 3A |
|
Consumption |
< 15W |
|
Lightning Protection |
Transient voltage 6000V |
|
Related validation |
IP66,CE,FCC,RoHs |
