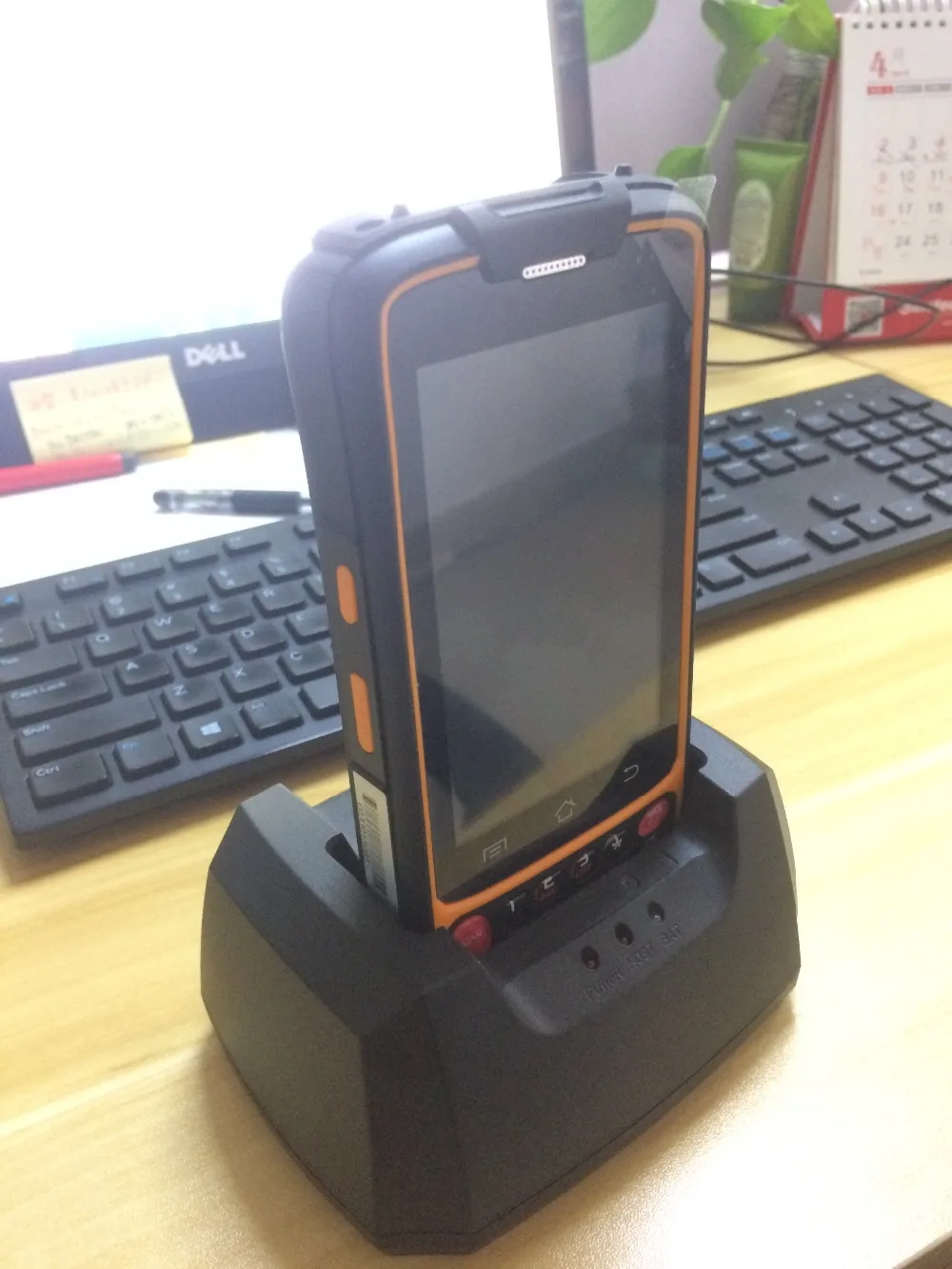

Handheld Data Collection PDA Terminal 4G Android Mobile 1D / 2D Barcode Scanner QR Code Reader with LF 125K / 134.5K RFID reader


![]() | 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
---|---|
![]() | On-time Delivery Guarantees: On-time Delivery 60 days |
Handheld Data Collection PDA Terminal 4G Android Mobile 1D / 2D Barcode Scanner QR Code Reader with LF 125K / 134.5K RFID reader
Standard Configuration:
Android 5.1+4” Screen+2G RAM+16GROM+Wifi+Bluetooth4.0+ Camera + GPS + 4G
Free SDK
Optional: 1D / 2D Barcode Scanner , NFC/RFID , UHF / LF (Flexible customization according to your requirements, If you have any questions, please contact me on TradeManager or Skype: xcl.selinna )
Standard Accessories:
Handheld Device 1 Pcs, Battery 1pcs, Usb data cable1pcs, Charger 1pcs
Standard Features:
8.0M mega pixel camera, auto-focus with LED flash
Multiple languages
Support Google Play Store
2GB RAM, 16 GB ROM, MicroSD(max 32GB expansion)
Android 5.1.1 OS
SIM card,2 PSAM card, Micro SD (TF) Card Expand Port;
High capacity 8000mA large capacity battery for critical requirement
Industrial rugged design, waterproof and protection grade(IP65)
Support 4G / Wifi / GPS / Bluetooth
Free Software Development Kit
RT330Q Specifications
PHYSICAL CHARACTERISTICS | ||
Dimension | 158mm(H)x75mm(W)x28mm(D)±2 mm | |
Weight | Net Weight :300g (including battery&wrist strap) | |
Display | 4.0 in. TFT-LCD(WVGA 480×800)touch screen with backlight | |
Backlight | LED backlight | |
Keypads | 3 TP keys, 17 function keys, 4 side buttons | |
Expansions | 2 PSAM, 1 SIM, 1 TF | |
Battery | Rechargeable li-ion polymer, 3.7V, 8000mAh | |
PERFORMANCE CHARACTERSTICS | ||
CPU | Cortex A7 1.2GHz dual-core | |
Operating System | Android 5.1 | |
Storage | 2GB RAM, 16GB ROM, MicroSD(max 32GB expansion) | |
USER ENVIRONMENT | ||
Operating Temp. | -20℃ to 50℃ | |
Storage Temp. | -20℃ to 70℃ | |
Humidity | 5%RH to 95%RH(non-condensing) | |
Drop Specifications | 5ft./1.5 m drop to concrete across the operating temperature range | |
Sealing | IP65, IEC compliance | |
ESD | ±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge | |
DEVELOPMENT ENVIRONMENT | ||
SDK | Software Development Kit | |
Language | Java | |
Environment | Android Studio or Eclipse | |
DATA COMMUNICATION | ||
WWAN | WCDMA(850/1900/2100MHz),LTE, GSM/GPRS/Edge 850/900/1800/1900MHz) | |
WLAN | IEEE 802.11 b/g/n | |
WPAN | Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 | |
GPS | GPS(embedded A-GPS), accuracy of 5 m | |
DATA CAPTUER | ||
BARCODE READER(OPTIONAL) | ||
1D barcode | 1D laser engine | Honeywell N431x |
Symbologies | All major 1D barcodes | |
2D barcode | 2D CMOS Imager | Honeywell N6603 |
Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. | |
COLOR CAMERA | ||
Resolution | 8.0 megapixel | |
Lens | Auto-focus with LED flash | |
RFID READER(OPTIONAL) | ||
RFID LF | Frequency | 125KHz/134.2KHz(FDX-B/HDX) |
Protocol | ISO 11784&11785 | |
R/W Range | 2cm to 10 cm | |
RFID HF | Frequency | 13.56MHz |
Protocol | ISO 14443A&15693 | |
R/W Range | 2cm to 8cm | |
Active 2.45GHz | Read range more than 200 m | |
433MHz | Read range more than 200 m | |
ZigBee READER(OPTIONAL) | ||
Protocol | IEEE 802.15.4 | |
Reading Range | 100 m to 200 m | |
PSAM SECURITY(OPTIONAL) | ||
Protocol | ISO 7816 | |
Baudrate | 9600, 19200, 38400,43000, 56000, 57600, 115200 | |
Slot | 2 slots(maximum) | |
ACCESSORIES | ||
1xPower Supply | ||
Standard | 1xLithium Polymer Battery | |
1xDC charging cable | ||
1xUSB data cable | ||
Magnetic charging cable | ||
Optional | Carry Case Thermal Printer Cradle | |
