HBSS 1.0MP POE Camera IR night vision Onvif motion detection Power over Ethernet Onvif Dual stream Surveillance Cameras

Mosafe 1MP 1280*720P POE Camera

Residenitial surveillance uses:

• Exteriors: porches, backyards, patios, gardens, pools.
• Interiors: bedrooms, nurseries, garages, guest houses.
• The cameras protect your home by deterring trespassers.

Business surveillance uses:

• Exteriors: entrances, car parks, courtyards, shipping bays.
• Interiors: retail, offices, warehouses, stockrooms, lobbies.
• Visible cameras deter criminal activities and let you observe

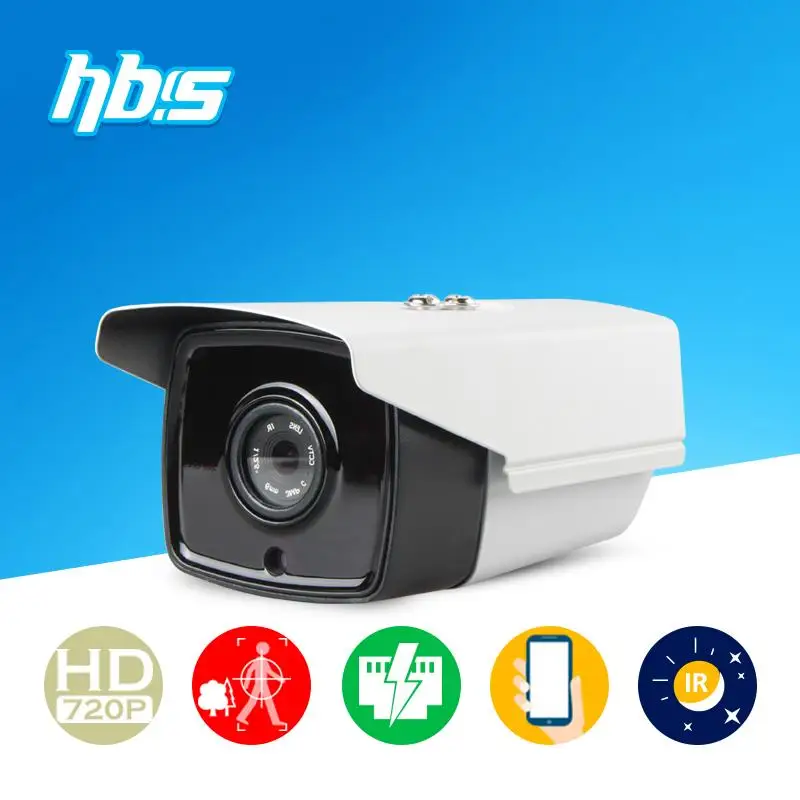

1.0MP 1280x720P HD POE CAMERA

KC1MHK04P

Utilizing the color CMOS image sensor and Hi3518C DSP to capture definition video with high clarity. Offering bank security grade video monitoring back with advanced IP video streaming technology. 720P HD video recording, easily remote watch real-time HD video anywhere at anytime.

Package includes:

• 1 x 720P HD POE Camera
• 1 x Camera Mounts
• 1 x Waterproof connector
• 1 x Screws Package
• 1 x User Manual CD
• 1 x Quick Start Guide
• 1 Year Warranty

*Power Over Ethernet Camera doesn’t request
Power Supply. the power comes from POE Switch.

Install it wherever you like

With IP66 wather-resistant rating, that shield their sensitive
electronics from dust and water, which make sure they could
operate well all types of weather conditions.

May be installed at any place where an image of a user or
any other desired object can be captured.

Access on the go

Based on P2P (peer to peer) technology, support plug-and-play
installation. Access the IP camera through its web interface via
Internet Explorer, Chrome, Firefox, also comes with a free
smartphone App (Android & iPhone) for remotely view from
anywhere.

See in the dark

Capture clear, well-defined images in low light. This
camera’s Smart IR (smart infrared) feature automatically
adjusts the infrared light required in a scene as the
subject moves closer to or further away from the camera,
producing optimal brightness and a razor-sharp, clear
image that’s neither washed out at close range or too
dark at longer distances.

IR Corrected HD Lens

Using megapixel IR corrected lens to get better focus,
sharper contrast and better overall image quality.

Motion Detection

Identify activity. This feature provides a visual indicator
on the monitoring display when movement is discovered
inside the camera’s field of view, so that an operator is
quickly alerted when activity is recognized.

Onvif Compliant

it works with network video recorders and video
surveillance software from third-party manufacturers
because of complies ONVIF protocol.

Enjoy higher compatibility with more equipment. This
product conforms to ONVIF (Open Network Video
Interface Forum) specifications pertaining to IP-based
security products. ONVIF specifies a common protocol
for the exchange of info between various network video
devices from different manufacturers, to permit greater
interoperability in multi-vendor network video devices.

Digital Noise Reduction(DNR)

Gain a clear view in extreme lighting conditions. This particular feature enables the camera to provide clearer images in less than ideal lighting conditions. D-WDR balances the contrast of light and also shadow to enhance visibility in darkish areas inside a scene.

Wide Dynamic Range(WDR)

True WDR or real WDR is the very important feature when the security cameras need to monitor the challenging scenes include both bright and dark areas. In this situation, conventional security cameras are unable to obtain the optimum exposure to produce a high quality image with detail in both of these areas of contrasting light intensity.

Automatic white balance (AWB)

White balance (WB) is the process of removing unrealistic color casts, so that objects which appear white in person are rendered white in your photo. Proper camera white balance has to take into account the “color temperature” of a light source, which refers to the relative warmth or coolness of white light.

Tech Specs

Camera

• Processor: Hi3518E
• Image Sensor: 1/4″ Color CMOS Progressive Scan
• Signal System: PAL / NTSC
• Infrared: 4 pcs IR Leds , IR Range 20m
• Min. Illumination: Colour 0.01 Lux, F1.2 , B/W 0.001 Lux, F1.2
• Day& Night: IR cut filter with auto switch
• Max S/N Ratio: 39dB
• Lens: default: 6mm (option:2.8mm,4mm,8mm,12mm,16mm)

Compression Standard

• Video Standard: H.264
• Bit Rate: 32 Kbps ~ 4 Mbps, Supports CBR / VBR
• Dual Stream: Yes


• Max.Resolution: 1280 x 720
• Frame Rate: 50Hz: 25fps (1280 x 720) / 25fps (704 x 576)
• 60Hz: 30fps (1280 x 720) / 30fps (704 x 576)
• Image Settings: Brightness, Saturation, Contrast, Hue adjustable
• Image Process: AE, AWB, ABF, ABLC,Digital WDR
• Image Orientation: Flip and Mirror

Network

• Alarm Trigger: Motion Detection, Video Blind, Video Loss
• Alarm Way: Email Alarm or FTP Upload
• Protocols: TCP/IP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP
• Compatibility: ONVIF, CGI

Interface

• 1 RJ45 10M / 100M ethernet interface
• Wifi 802.11 b/g/n

Size and Weight

• Dimensions:190mm(L)*87mm(H)
• Net Weight: 500g

Product Pictures:

Video Capture:How to choose the right Lens?Connection Guide:
