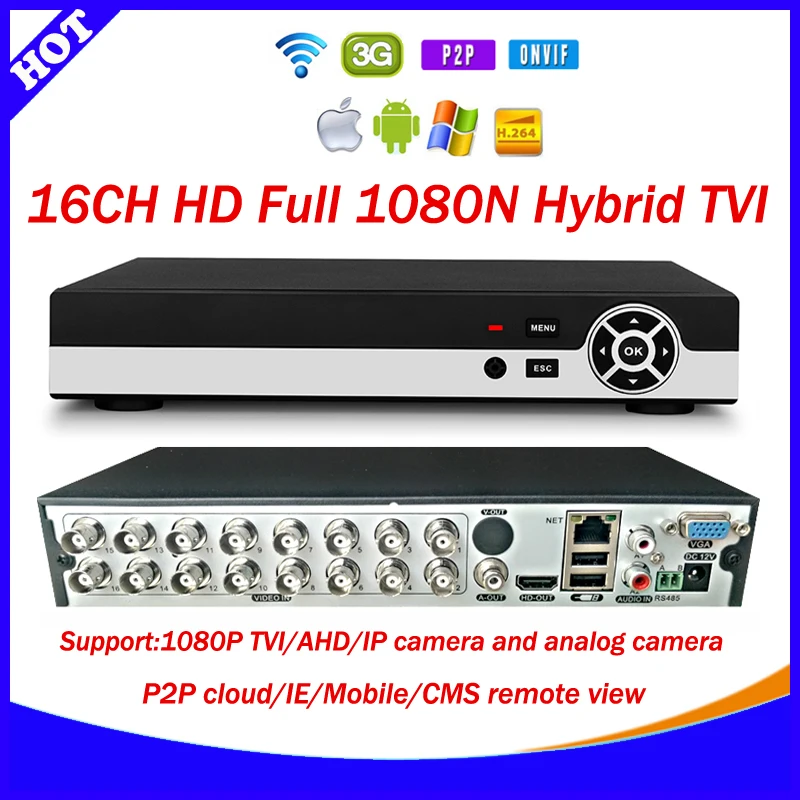

HD 16CH 1080N CCTV TVI recorder p2p cloud 16 Channel 1080P Hybrid TVI/AHD/HVR/DVR/NVR 5 in 1 Security DVR with 3G+WIFI+xmeye app

HD 16CH 1080N CCTV TVI recorder p2p cloud 16 Channel 1080P Hybrid TVI AHD HVR DVR
Click to see details
HD 16CH 1080N CCTV TVI recorder p2p cloud 16 Channel 1080P Hybrid TVI AHD HVR DVR
60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $118.00 / piece
Sale price:  US $112.10 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


USD 58.00/piece


*AHD TVI/DVR support TVI camera+AHD camera+Analog camere+IP camera+HVR(Five in One). *You can upgrade an old analog security system to TVI/ AHD system without changing cable routes. *High image quality at the resolution of 1080N(Support 1080P/960P/720P TVI/ AHD cameras). Attention : The TVI/ AHD DVR is only with 1*VGA and 1*HDMI output,Without BNC Output. *Good compatibility:Support D1,960H, TVI/ AHD 720P,960P and 1080P cameras *Low cost:Cost even less than traditional DVR *Support 500m via coaxial cable *Support P2P, www.xmeye.net

16CH 1080N TVI AHD DVR Specification :

It can connect the following model: 1. Pure Analog: 16pcs old analog cameras, 16pcs (TVI/AHD)1080P,16pcs (TVI/AHD) 960P or 16pcs(TVI/AHD) 720P High Definition analog cameras 2. Mixed: 8*AHD-M 720P(Analog)+8*720P(Network) 3. Pure Network: 8*720P+1*1080P; 4*1080P;

Model No.


Main Processor


Operation System

Embedded Linux

Video Compression

H.264 High profile 3.0

Video Quality


Max ability for

Encode : PAL1080N/192FPS;NTSC: 1080N /192FPS

Decode : PAL: 1080N /120FPS; NTSC: 1080N /120FPS

Mode Type

Analog AHD support:(16ch*720P real-time recording;16ch*960P real-time recording;

16ch*1080N/1080P 12fps/ch recording)

HVR support:(8ch*analog 720P+8ch*IP camera 720 real-time recording)

NVR support:(1ch*1080P+8ch*720P real-time recording, 4ch*1080P real-time recording)

Video Input

16CH (BNC)

Video Output

1 * VGA ,1 * HDMI

Smart Video

Motion detection: Default Open , Lever: Middle

Video Loss: Default Open, Support

Audio Input


Audio Output


Audio Compression

PCM,8k 8bit ;8kbps

Play Back

Local(1/4/8 channel),Network Playback(1/4 channel)


Support:Main stream D1(25fpbs)fixed stream,1024K,sub stream default for CIF,5 fpbs,128kbps

Network Interface

RJ45 10M/100M Self-Adaptive Ethernet Interface

Server Support

IE,(google,firebox server need instaill IE plug-in)

Mobile Application

Support iPhone,Android

P2P Cloud



Support,1ch *RS485

Hard disk Interface


USB Interface

2*USB2.0,Support USB Flash upgrade(OTG)










DC12V,power dissipation 4W(Without HDD)



Product pictures:

Package Includes: 1 x TVI/AHD Hybrid 4 IN 1 security DVR with pre-installed HDD interface 1 x Quick operation User Manual 1 x Power Adapter(US,EU,UK,AU Optional) 1 x Mouse 1 x CD This Item Doesn’t Contain Hard Disk TVI/AHD DVR Menu:

Operation Overview:

1.Login the AHD DVR via P2P cloud in IE.

2.Login the AHD DVR via CMS Client software.

3.Romote review by Mobile.
