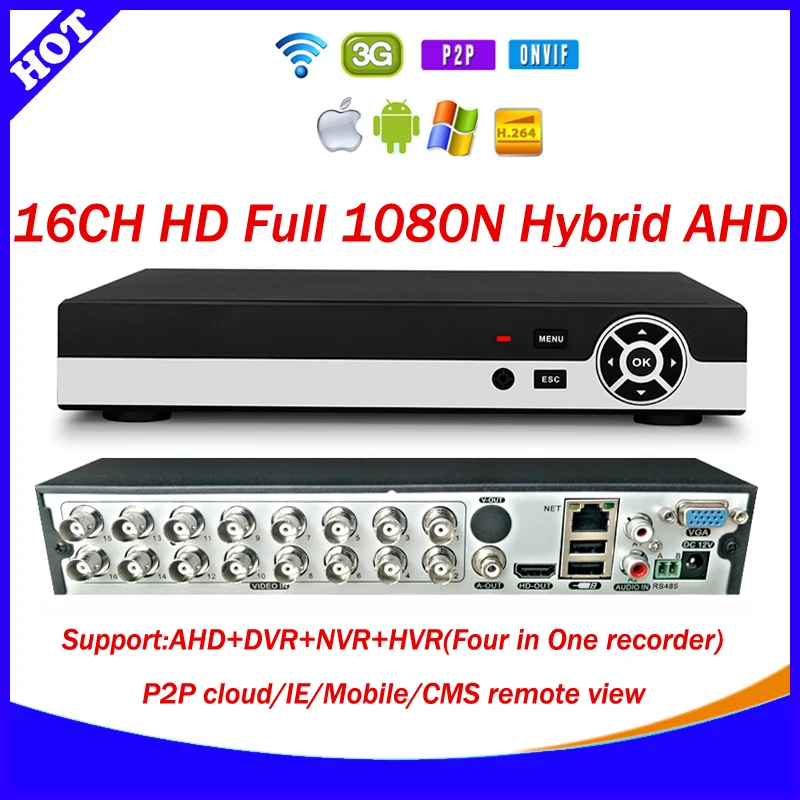

HD 16CH 240fps 1080N CCTV AHD recorder onvif p2p cloud 16Channel 1080P Hybrid AHD/HVR/DVR/NVR 4 in 1 Security DVR with 3G+WIFI
 |
45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
|---|---|
 |
On-time Delivery Guarantees: On-time Delivery 60 days |
Sort By
| Top-rated Seller |
Most Popular from Category
USD 58.00/piece
Features:
*AHD DVR support AHD camera+Analog camere+IP camera+HVR(Four in One). *You can upgrade an old analog security system to AHD system without changing cable routes. *High image quality at the resolution of 1080N(Support 1080P/960P/720P AHD cameras). Attention : The AHD DVR is only with 1*VGA and 1*HDMI output,Without BNC Output. *Good compatibility:Support D1,960H,AHD 720P,960P and 1080P cameras *Low cost:Cost even less than traditional DVR *Support 500m via coaxial cable *Support P2P, www.xmeye.net
16CH 1080N AHD DVR Specification :
It can connect the following model: 1. Pure Analog: 16pcs old analog cameras, 16pcs (AHD)1080P,16pcs (AHD) 960P or 16pcs(AHD) 720P High Definition analog cameras 2. Mixed: 8*AHD-M 720P(Analog)+8*720P(Network) 3. Pure Network: 8*720P+1*1080P; 4*1080P;
|
Model No. |
AHD-716N-B |
|
Main Processor |
Hi3531 |
|
Operation System |
Embedded Linux |
|
Video Compression |
H.264 High profile 3.0 |
|
Video Quality |
PAL(625TVL,50fpbs),NTSC(525TVL,60fbps) |
|
Max ability for |
Encode : PAL1080N/200FPS;NTSC: 1080N /240FPS |
|
Decode : PAL: 1080N /100FPS; NTSC: 1080N /120FPS |
|
|
Mode Type |
Analog AHD support:(16ch*720P real-time recording;16ch*960P real-time recording; 16ch*1080N/1080P 15fps/ch recording) HVR support:(8ch*analog 720P+8ch*IP camera 720 real-time recording) NVR support:(1ch*1080P+8ch*720P real-time recording, 4ch*1080P real-time recording) |
|
Video Input |
16CH (BNC) |
|
Video Output |
1 * VGA ,1 * HDMI |
|
Smart Video |
Motion detection: Default Open , Lever: Middle |
|
Video Loss: Default Open, Support |
|
|
Audio Input |
2ch |
|
Audio Output |
1ch |
|
Audio Compression |
PCM,8k 8bit ;8kbps |
|
Play Back |
Local(1/4/8 channel),Network Playback(1/4 channel) |
|
Dul-stream |
Support:Main stream D1(25fpbs)fixed stream,1024K,sub stream default for CIF,5 fpbs,128kbps |
|
Network Interface |
RJ45 10M/100M Self-Adaptive Ethernet Interface |
|
Server Support |
IE,(google,firebox server need instaill IE plug-in) |
|
Mobile Application |
Support iPhone,Android |
|
P2P Cloud |
Support(IE,Mobile,PC) |
|
PTZ |
Support,1ch *RS485 |
|
Hard disk Interface |
1*SATA(Max:4TB) |
|
USB Interface |
2*USB2.0,Support USB Flash upgrade(OTG) |
|
3G |
YES |
|
WIFI |
YES |
|
HDMI/VGA |
YES |
|
Alarm |
N/A |
|
Power |
DC12V,power dissipation 4W(Without HDD) |
|
Size |
260*43*190MM |
Product pictures:
Package Includes: 1 x AHD Hybrid 4 IN 1 security DVR with pre-installed HDD interface 1 x Quick operation User Manual 1 x Power Adapter(US,EU,UK,AU Optional) 1 x Mouse 1 x CD This Item Doesn’t Contain Hard Disk
AHD DVR Menu:
Operation Overview:
1.Login the AHD DVR via P2P cloud in IE.
2.Login the AHD DVR via CMS Client software.
3.Romote review by Mobile.
