HD 720P 4ch LCD AHD DVR Kit for security Camera System with 10.1 inch LCD Screen

HD 720P 4ch LCD AHD DVR Kit for security Camera System with 10 1 inch LCD
Click to see details
HD 720P 4ch LCD AHD DVR Kit for security Camera System with 10 1 inch LCD
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $176.00 / piece
Sale price:  US $140.80 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HD 720P 4ch LCD AHD DVR Kit for security Camera System with 10.1 inch LCD Screen

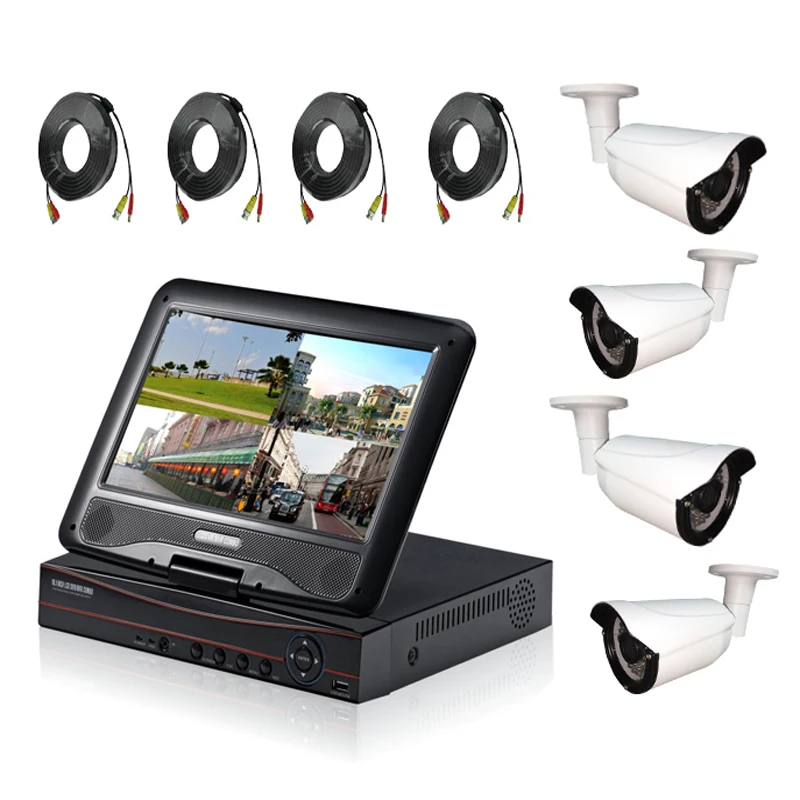

DVR kit include:

4CH LCD AHD DVR,

4pcs outdoor IR camera,

1pcs 12v 4A power for cameras,

1pcs 12v 2A power for Dvr,

4 pcs 18.5m coaxial cable,

1pcs Mouse

Model4ch8ch
SystemMain processorHi3520DHi3521
InterfacePreview1/41/4/8/9
VideoCodecH.264(High Profile)H.264(High Profile)
Monitor qualityHDMI
Encode ability4*1080N/4*AHD-M8*1080N@15fps/8*AHD-M
Decode ability1*1080N/1*AHD-M1*1080N@15fps/1*AHD-M
Multi-modeanalog: 4*1080N;4*AHD-M;4*AHD-L;analog: 8*1080N;8*AHD-M;4*AHD-M;8*AHD-L;
inputhybrid: 2*AHD-M(analog)+2*720P(network)hybrid: 4*AHD-M(analog)+4*720P(network)
IP:4*720P;8*1080P;4*1080P;1*1080P;8*720P ;IP:8*720P;2*1080P+2*720P;
Motion DetectionEach screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
AudioAudio compressionG.711A
Intercomsupport
Record & playbackRecord modemanual>alarm>motion detection>timing
Local PlaybackAHD-M/AHD-L/D1
Search modeSearch by time, calendar, event, channel
Storage & backupVideo storageHDD, network
Backup modeNetwork, USBhard disk, USB burner, SATA burner
External InterfaceVideo input4ch BNC8ch BNC
Video output1ch VGA, 1ch HDMI
Loop VoutN/A
Audio I/O4/1
Alarm I/ON/A
Network interfaceRJ45 10M/100M self-adaption
PTZ control1*RS485, Support kinds of PTZ protocols
USB3* USB 2.0 ports
HDD1*SATA ports (Max4TB/per)
WirelessN/A
GeneralPower supply12V/3A
Power Consumption<15W (without HDD)
Working environmentTemperature:0 degree – 55 degree,Humidity:10%-90%
Dimension250mm(L)* 240mm(W)* 46mm(H)
Weight2Kg
Image Sensor1/4″ CMOS
Effective Resolution720P
Lens3.6/6MM Fixed Lens
Min. Illumination0.1Lux/F1.2 (IR OFF)
Signal systemNTSC / PAL
IR Illuminators24PCS IR LEDs
Night Vision20M Night Vision
Wavelengh850NM
Back Light CompensationAuto
Auto IrisVideo / DC
Gamma0.45
S/N Ratio48db (AGC-OFF)
Scanning System1:1 Progressive
Synchronization SystemInternal Synchronization
Shutter Speed1/60-1/15000 (second)
waterproofIP66
Video Output1.0Vp-p, 75 OHM
Power Supply12V DC (Sold separately)
Operation Temperature-10C ~ 50C / 0F ~ 110 F
