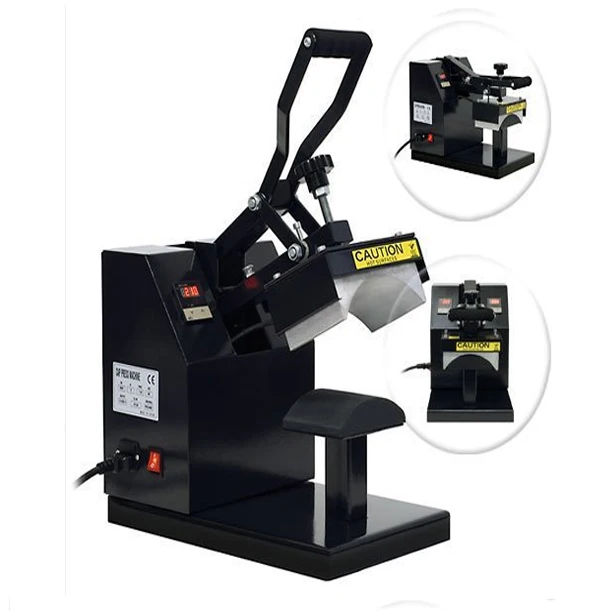

heat transfer machnine for caps heat press machine for caps ST 2815

 font b heat b font transfer machnine for caps font b heat b font font
Click to see details
heat transfer machnine for caps heat press machine for caps
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $355.00 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


heat transfer machnine for caps heat press machine for caps ST 2815

heat transfer machnine for caps parameter:

Voltage: 220V/ 110V

Power: 600W

Temperature Scope: 0-399 C degree

Time Scope: 0-999 sec

Printing Size: 9.5x 15cm

Package Size: 54x 32x 86cm

Weight: 15kg

heat transfer machnine for caps Feature:

1 Temperature controller adapt digital temperature control, high accuracy;

2 Electronic time control, process completion signal indication;

3 Floor installation of high temperature rubber sponge, stamping wide range;

4 Easy pressure adjustment;

5 Heat pipe and the heating plate note for one, heating time is short, safe and reliable;

6 Steam moving under pressure, more efficient, more effort;

heat transfer machnine for caps Apply:

The machine can printing any color color, portrait photos, landscape design and other stamping in the hat, especially for wide gifts, posters, etc. and also as personalized gifts and art appreciation and practicality in one.

Use Instructions:

1 Note: For safety reasons, the power supply must meet a protective ground wire single-phase three-wire power supply;

2 Lift the operation handle to keep the machine is open states. Put the products on work board, test the pressure if ok. If not,adjust the pressure knob. (Turn the knob clockwise to increase pressure, counterclockwise rotation to reduce pressure;)

3 Open the machine, take off the products.( Please do not put the products on worktable when heating in order to avoid bad roast;)

4 Turn on power switch, Temperature controller self-check, about 10 seconds after the self-test and enter the work state, set the operating parameters is available at this time, (the first time, set up the required: temperature, time after time and see attached instrument panel temperature Operating instructions)

5. set up the required temperature, time, the machine starts to heat up heating (the temperature rose to 200C degree takes about 15 minutes)

6. until the machine reaches the desired temperature, the need to transfer the hat tile placed on a table, and then stacked to transfer the image, pressing the operating handle, the machine automatically starts counting, to set the time machine alert tone, lift the operating handle, remove the cap speed, torn paper at the end, once the operation is completed.


1 If it is cool sublimation paper, printing completed. please waiting 15-20 seconds. Then tear it off. If it is heat sublimation paper, printing completed, please tear off the paper asap (Diagonal grain to tear down the clothes). Successful printed, need right time, temperature and pressure;

2 The final printed result depend on the products thickness,material and variety of sublimation paper.

3 different kinds of printing, please testing the sample. After get right time and temperature, then volume production.

Simple Troubleshooting

1 Fault Phenomenon

Method: Judgement and treatment methods

2 Power Switch is turn on,but the light of machine is off;

Method: Power interface is not firm or the fuse of the power connector is burnout

3 Press knob is inflexible;

Method: Adding the lubricating oil on the rotary knob

4 Handlebar pressed down and get bumped ;

Method: Please adjust the pressure position screw to down

5 Handlebar is hard to lift;

Method: Please adjust the pressure position screw to up or counterclockwise to adjust the pressure adjustment knob

6 Heat plate can not heating;

Method: Instrument failure or chassis of the relay does not work or heat board burned
