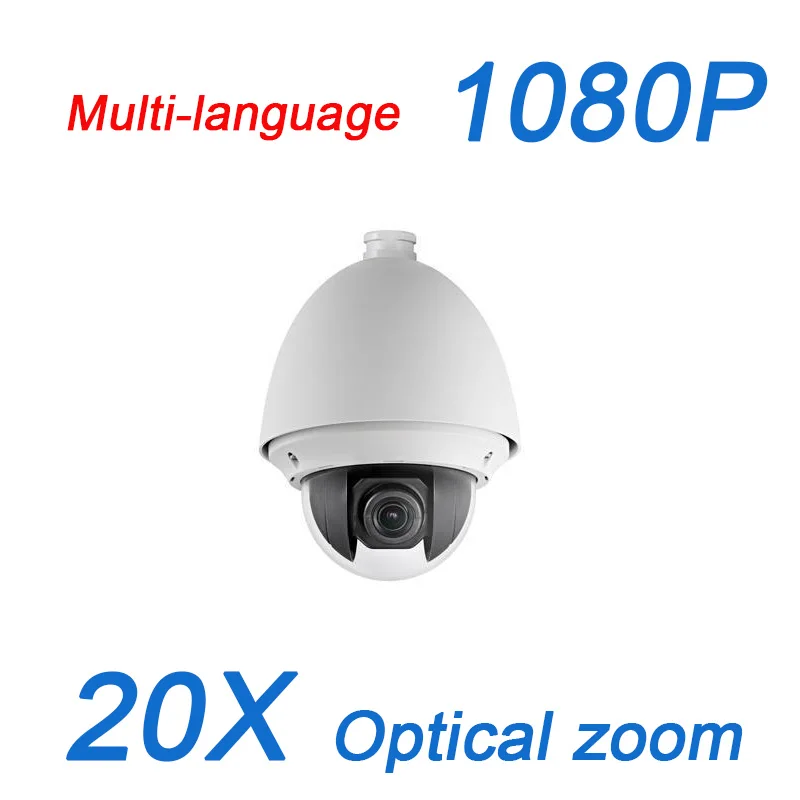

HIK DS-2DE4220-AE Multi-language 1080P FULL HD IP Network PTZ high speed Dome 20X Optical zoom PoE onvif security CCTV Camera

HIK DS 2DE4220 AE Multi language 1080P FULL HD IP Network PTZ high speed Dome 20X
Click to see details
HIK DS 2DE4220 AE Multi language 1080P FULL HD IP Network PTZ high speed Dome 20X
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $364.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

HIK DS-2DE4220-AE Multi-language 1080P FULL HD IP Network PTZ high speed Dome 20X Optical zoom PoE onvif security CCTV Camera Features

Up to 1920 x 1080 resolution

Full HD1080p real-time video

Support SD card slot, up to 128GB

20X Optical zoom, 16X digital zoom

PoE+/ PoE / 24VAC power supply

3D Digital Noise Reduction

Digital WDR

Support EZVIZ Cloud service

Mobile monitoring (IVMS-4500 or EZVIZ app)

360°endless pan range and 0°-90° tilt range

0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed

300 presets programmable

3D intelligent positioning function

Technical parameters

DS-2DE4220-AE

Camera

Image Sensor:

1/2.8″ Progressive Scan CMOS

Effective Pixels:

1920(H)x1080(V)

Signal System:

PAL/NTSC

Minimum Illumination:

Color : 0.05 lux (F1.6, 1/30 sec, 50 IRE, AGC On)

B/W : 0.01 lux (F1.6, 1/30 sec, 50 IRE, AGC On)

Color : 0.02 lux (F1.6, 1/1 sec, 50 IRE, AGC On)

B/W : 0.002 lux (F1.6, 1/1 sec, 50 IRE, AGC On)

White Balance:

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Auto/Manual

S/N Ratio:

≥ 52dB

BLC:

ON/OFF

HLC:

Support

Smart defog:

Support

WDR:

Support

Shutter Time:

1/1-1/10,000s

Day& Night:

ICR

Digital Zoom:

16X

Privacy Masking:

2 privacy masks programmable

Auto Focus:

Auto / Semi-automatic / Manual

Focal Length:

4.7-94mm, 20x

Zoom Speed:

Approx.3s (Optical Wide-Tele)

Angle of View:

58.3 ~ 3.2 degree (Wide-Tele)

Minimum Working Distance:

10 ~1000mm (Wide-Tele)

Aperture Range:

F1.6 ~ F3.5

Pan & Tilt

Pan Range:

360°endless

Pan Speed:

Pan Manual Speed: 0.1° ~ 160°/s,

Pan Preset Speed: 160°/s

Tilt Range:

Tilt: 0°~90°

Tilt Speed:

Tilt manual speed: 0.1° ~ 120°/s,

Tilt preset speed: 120°/s

Proportional Zoom:

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

300

Patrol:

8 patrols, up to 32 presets per patrol

Power loss recovery:

Support

Park Action:

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ Position Display:

ON/OFF

Freeze Frame:

Support

Alarm

Alarm Input:

1

Alarm Output:

1

Alarm Actions:

Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage

Input & Output

Audio Input:

1 Mic in/Line in interface

Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

Audio Output:

1 Audio output interface

Line level, impedance: 600Ω

Network

Ethernet:

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:

1920×1080

Frame Rate:

50Hz: 25 fps (1920×1080), 25 fps (1280×720);

60Hz: 30 fps (1920×1080), 30 fps (1280×720

Image Compression:

H.264 / MJPEG

ROI encoding:

Support 2 areas with adjustable levels

Audio Compression:

G.711ulaw/G.711alaw/G.726/MP2L2

Protocols:

IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,

TCP, UDP,IGMP, ICMP, DHCP, PPPoE

No. of Simultaneous Users:

Up to 20 users

Dual Stream:

Support

Mini SD Card:

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

User/Host Level:

Up to 32 users,3 Levels: Administrator, Operator and User

Security Measures:

User authentication (ID and PW),

Host authentication (MAC address)

IP address filtering

EZVIZ:

Support

Client GUI

Camera Control:

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Date & Time Display:

Time: Week: Date, 6 formats on the Client

Client:

Support iVMS-4200

Web Browser:

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +

General

Power Supply:

-AE: 24VAC/PoE+(802.3at); -AE3: 24VAC/PoE(802.3af)

Power Consumption:

Max. 18W

Working Temperature/Humidity:

-AE: -30°C ~ 65°C (-22°F ~ 149°F) / -AE3: -10°C ~ 50°C (14°F ~ 122°F)

90% or less

Protection Level:

IP66 standard (outdoor dome)

TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting:

Various mounting modes optional

Dimensions:

Φ179.4×239.5mm (Φ7.06”x9.43”)(outdoor)

Φ165×179.5mm(Φ6.50”x7.07”) (ceiling)

Φ165×168mm(Φ6.50”×6.61”) (In-ceiling)

Weight (approx.):

Approx. 2Kg (4.41Ibs)

Mount Option:

Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box
