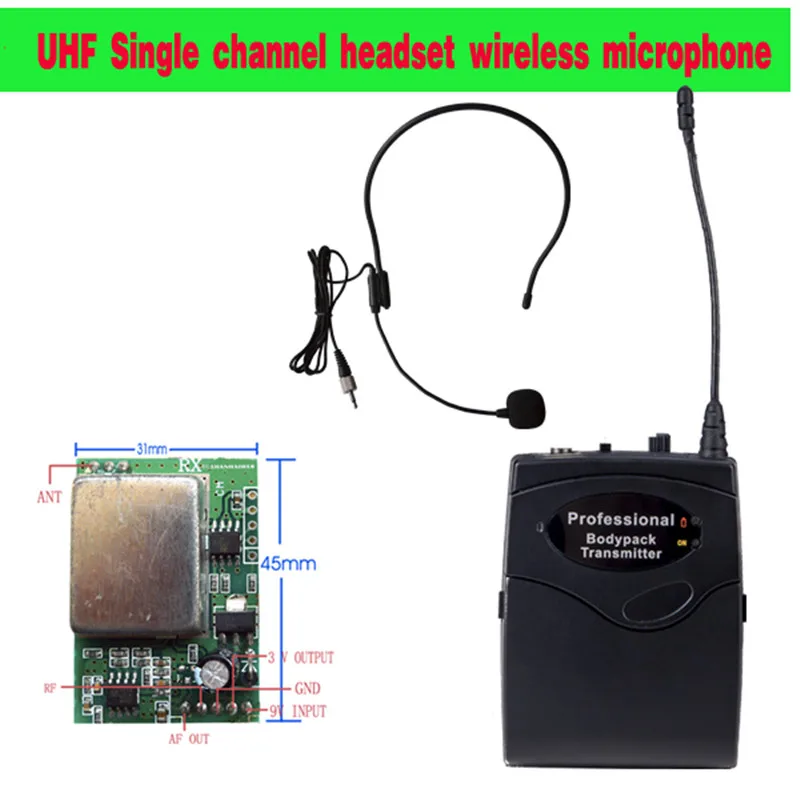

Made in China Single channel wireless UHF microphone system PCB Audio equipment headset mini portable smartphone mass supply

Made in China Single channel wireless UHF microphone system PCB Audio equipment headset mini portable font
Click to see details
Made in China Single channel wireless UHF microphone system PCB Audio equipment headset mini portable smartphone
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $56.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Product introduction

l Suitable for something need to add wireless microphone sound equipment.

l Can choose VHF or UHF.

l Because of the use of advanced digital circuit, the frequency is very stable and has an excellent frequency response characteristic.

l All SMD elements, assembly technology in the surface can improve the stability, which is loved by users.

l Use the new technique of CPU coding and simple circuit, low failure rate.

Product specification

1. UHF: 6000MHZ-850MHZ / VHF: 210-266MHZ

2. Modulation mode: Digital.

3. Frequency channel: 1.

4. Frequency stability: ±0.005%

5. Audio dynamic range: >105 Db

6. Maximum percentage modulation: ±45KHz

7. THD: ≤0.5%

8. Frequency response: 30Hz-15KHz(±3dB)

9. S/N Ratio: >105 dB

10. Temperature range: -10°C—+40°C

11. Working distance :100m

Receiver

1. The size of dash receiver: 31x45mm

2. Power supply: DC 12

3. Power dissipation: 120mA

4. Sensitivity: 12dBµV (80dBS/N)

5. Audio output level: 400mV

Transmitter

1. Output power: (max) 30mW

2. Battery: 3V(1.5V AA×2)

3. Battery life: 8-12hr

Configuration

1. Dash receiver: 1.

2. Headset transmitter: 1.

3. Battery (1.5V):2.

4. Specification: 1.
