MPEG4 HDMI Video Audio IP Encoder IPTV H.264 RTSP RTMP Live Encoder For IPTV, Live Broadcast Wowza Twitch Youtube Facebook Live

MPEG4 HDMI Video Audio IP Encoder IPTV H 264 RTSP RTMP Live Encoder For IPTV Live
Click to see details
MPEG4 HDMI Video Audio IP Encoder IPTV H 264 RTSP RTMP Live Encoder For IPTV Live
100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $190.00 / piece
Sale price:  US $163.40 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


• We also produce WIFI model(Click it to see product details)

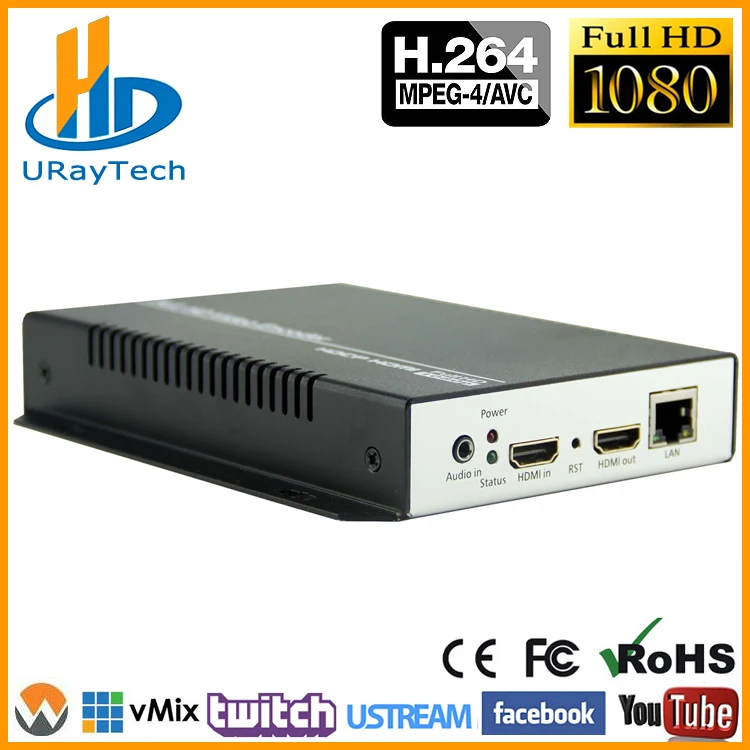

This HDMI video encoder(Model No. UHE264-1L) is URay newest professional HD audio and video encoding device with powerful functionality. It supports HDMI(audio build-in) and stereo audio(3.5mm jack) input, H.264 video encoding format and AAC / MP3 /G.711 audio encoding format, and then 4 video streams output simultaneously. It supports HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.

This HDMI encoder enable you to choose HDMI embedded audio or external stereo audio as output audio.

Not only single channel, we also produce multi-channel HDMI video encoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16pcs encoder cards to be installed.

1). For Live Broadcast Online Connection

2). For Multi-purpose Connection

3). For IPTV Project Connection

• Embedded HiLinux system, stable and effective

• Friendly web configuration UI(IP address can be setted by yourself)

• Support H.264 /AVC or MJPEG video encoding format selection

• Support AAC, AAC+, AAC++, MP3, MP2, AC3, G.711 audio encoding format selection

• Output stream bitrate is adjustable from 32kbit/s to 32mbit/s(CBR or VBR bitrate controlling)

• Support HTTP, UDP, RTP, RTSP, RTMP, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast streaming protocol

• Support image, logo, text parameter setting on the output displayed video

• Support output displayed video resolution and frame rate setting(max 1920x1080P /60fps)

• Support different protocol transmission for the 4 output video streams

• Firmware is upgradeable

• Support configure the encoder by using APP or webpage UI

• Support choose HDMI embedded audio or external audio as output audio

• Provide SDK and API also CGI for secondary development

• Support brightness, contrast, hue, saturation setting on output displayed video

• Support 1 channel HDMI loop out

• Network interface full-duplex mode with 1000M speed

• Support HDCP and HD blue-ray

• A wide area network remote management(via port forwarding)

• Support english webpage operating interface and language customizable

• A click to restore the default configuration

• Stable and effective, support 7 x 24h working time

• From 2 channels to 16 channels 1U /3U rack structure available, support up to 16pcs encoder cards to be installed

• Provide many kinds of customization(logo print, language, transcoder function etc)


• Multi platforms live broadcast

This HDMI encoder is easy to be operated. Turn your HDMI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, you can choose any of the popular live streaming platform to live streaming at anytime you like, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, up to 4 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.

Here is the example of live broadcast on youtube. Find RTMP url and key in YouTube live dashboard, input the information in the RTMP setting of the encoder. Use RTMP streaming protocol to push the video stream to youtube server.

Model No. UHE264-1L
Input 1xHDMI
Input Resolution 1080P /1080i /720P, 50 /60Hz and below
Encoding Type MPEG-4 /H.264 AVC or MJPEG
Encoding Levels H.264 high /main /baseline profile
Video Bitrate From 32Kbit /s to 32Mbit /s is adjustable
Bitrate Control CBR /VBR
Output Resolution Support max 1920x1080P /60fps
Video Pre-processing De-interlacing, noise reducing and sharpening
Input HDMI embedded audio or 3.5mm audio line in for mixed
Audio Encoding AAC, AAC+, AAC++, MP3, MP2, AC3, G.711
Sampling Rate 44.1KHz, 48KHz
Bitrate Control From 48000 to 320000 adjustable
Sampling Accuracy 24bit
Interface Ethernet port(RJ45)
Streaming Protocol HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast
Control Panel Webpage UI(language customizable) or APP control
Firmware Update Enable by uploading files to dashboard

Dimension (W* L* H)

129 * 105 * 30 /mm
Gross Weight 0.3KG
Temperature 0 to 45(For working), -20 to 80(For storing)
Input Voltage DC 12V /1A
Power Consumption 5W


• Streaming media server(Wowza, Xtream codes, Flash media server etc)

• Online live broadcast(Youtube live, Facebook live, Ustream, Twitch etc)

• NVR(net video recorder)

• Teaching /campus broadcast

• Hotel TV system

• Video conference

• Digital signage

• Recording system(Replace video capture card)

• If you prefer other payment method(paypal, T/T, west union ect), please contact us.

• If you are worried about customhouse charge, please contact us.

• If you require logo print, SDK and API and CGI, firmware customization, please contact us.

• If you require discount for bulk order(>5pcs), please contact us.

• If you want to know more product details, please contact us.

• If you meet the technical problems, please contact us.

• If you want to test this device before buying, please contact us.

Shenzhen URay Technology Co., Ltd is a new technical enterprise with high speed and stable development. These years we are concentrating on the technical research and improvement, producing and marketing all types of HEVC /H.265 and H.264 /AVC video encoder and video decoder and video capture card. Our main product line is HDMI encoder and decoder, SDI encoder and decoder, VGA encoder and decoder, HDMI capture card, SDI capture card etc.. Presently these products are widely used in the industrial & enterprise & school & hospital etc.. Vast of video encoders and video decoders and video capture cards are exported overseas to many countries in different continent in a year. We are looking forward to the cooperation and development with the customers for creating a bright feature.
