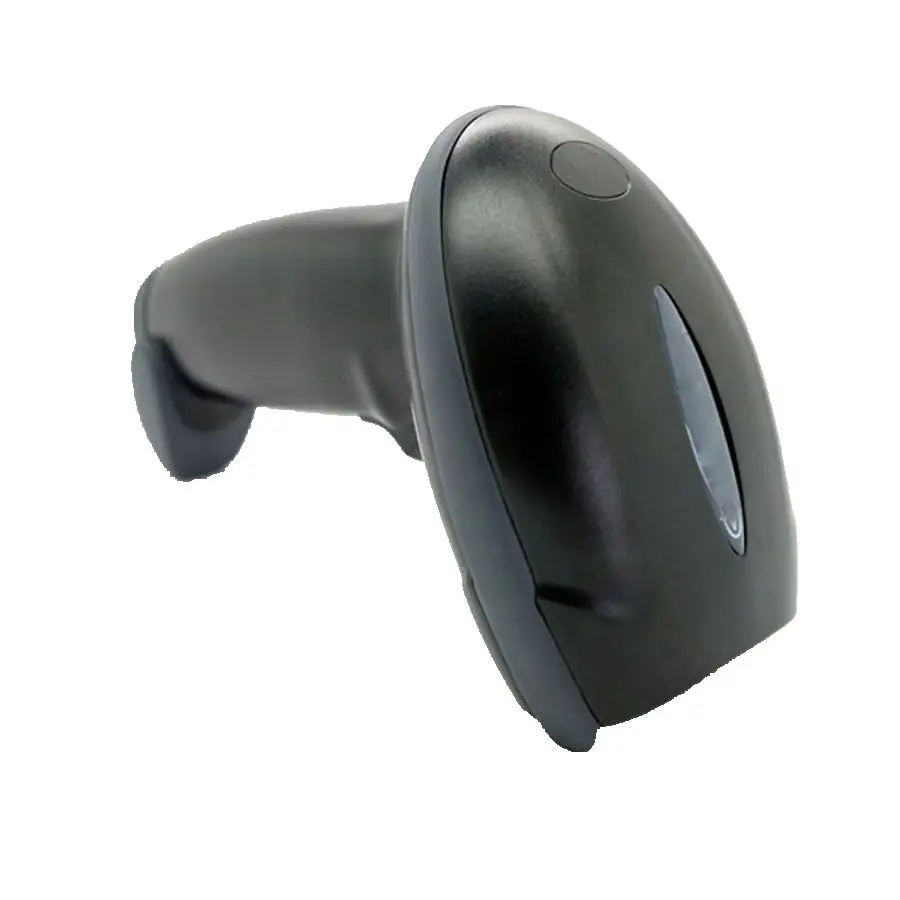

MS8100 Series Handheld Area Image Barcode Scanner
MS8100 series handheld area image barcode scanner is the first generation imager product designed by Postech corporation, it is designed with the most advanced hardware and software platform therefore it offers the industrial-leading scan performance and reliability. MS8100 series offers versatility of area-imaging technology to fulfill different industrial application demands; in category of different focal length it offers Standard Version, High Density Version, and DPM (direct part mark) Version. Standard Version is widely considered as best cost effective product, but it offers promoted poor barcode reading performance especially on bad printed bardcode or broken barcode (both 1d and 2d). High Density Version is capable to read to minimum 3 mil barcode and all above (both 1d and 2d), it offers wide range of scanning element and scanning capability. DPM Version offers ideal solution forreading DPM codes (etching by laser) on various materials, for instance PCB-boards, resin products, and metal. MS8100 has very compact but ergonomic design, from where it is designed with high quality standard and performance to be widely used in versatility industrial applications including Auto motor, Medical industry, Logistical, Quality tracking and so on. Fetures
- Omni directional scanning capability: No need to adjust barcode
- Promoted image processing: High quality image
- Multiple Focal Options: Three product versions (Standard, HD and DPM), leading to improved productivity
- Multi-interface: auto interface detection
- Support mobile screen reading: capable to read coupons on mobile phone
- Medical standard material: anti- bacteria material
- High IP rating: IP43
- High Drop performance: 6 inch
|Symbology Decode Capability|
|Motion Tolerances||Up to 25 in. / 63.5 cm per second|
|Interfaces Supported||USB: HID Keyboard (default mode),COM Port Emulation|
|Minimum Resolution||-SR: Code 39 4.8mil; UPC 60% 5 mil; PDF417 5 mil,1:1048576Datamatrix 7.5 mil|
|-HD: Code 39 3 mil; UPC 60% 5 mil; PDF417 4 mil,Datamatrix 4.8 mil|
|1D|| UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code
128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
|2D|| PDF417, MicroPDF417, Composite Codes, TLC-39,
Data Matrix, Maxicode, QR Code, MicroQR, Aztec
|Typical Performance*||Typical Working Ranges|
|HD Focus Range||SR Focus Range||ER Focus Range|
|Bar Code Type||Symbol Density||Near||Far||Near||Far||Near||Far|
|Code 39||5.0 mil||5mm||90mm||30mm||120mm||80mm||180mm|
|100% UPCA||13.0 mil||8mm||200mm||15mm||350mm||10mm||480mm|
|Code 39||20.0 mil||8mm||250mm||15mm||350mm||20mm||550mm|
|PDF 417||6.8 mil||5mm||95mm||10 mm||150mm||70mm||220mm|
|Data Matrix||10.0 mil||5mm||110mm||10mm||180mm||65mm||260mm|
|QR Code||20.0 mil||10mm||150mm||10mm||350mm||20mm||450mm|
|Resolution 1D Code 39||2.8 mil (0.071mm)||4.8 mil (0.122mm)||4.8mil (0.122mm)|
|Resolution 2D Data Matrix||4.8 mil (0.122mm)||6.6 mil (0.168mm)||7.5mil (0.191mm)|
*Performance may be impacted by bar code quality and environmental conditions
