mug/cap/tray combo multifunction heat press machine

mug cap tray combo multifunction font b heat b font font b press b font font
Click to see details
mug cap tray combo multifunction heat press machine combo heat press machine 5 in 1
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $365.00 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


mug/cap/tray combo multifunction heat press machine with plate size: 15cm x 20cm

Buyer Notes:

Pls leave us a message under your order for below request:

1.The voltage you need: 220V or 110V

2.The plug standard: European standard/American standard/UK standard/or something else

Usually,if no special request or instruction,we will send 220v/European standard to you.thank you for understanding!

Normally in stock. When get your order, we can send them out with 5-7 work days. If have not, delivery time need 12-15 days. Will confirm that with your when get your order.

And our amount have not include the tax. If have not your any requested we will declare the actually value as your paid in invoice. Please contact us if you need us to declare low value.

multifunction heat press machine Parameter:

Voltage: 220V, 110V;

Power: 600W

Temperature Scope: 0-250 C degree;

Time Scope: 0-999sec;

Cup size: 110Z

Plate pad Diameter: 12cm and 15cm

Cap pad Diameter: 8x 15cm

Heat Plate size: 15cm x 20cm

Weight: 26KG/57LBS

Package Size: 52x48x51cm

combo heat transfer machine Feacture:

1. Automatic temperature indicator stable electronic data with high accuracy.
2. A separate circuit control box easy to replace the instrument.
3. The heating wire and the heating plate integrated, safe and durable.
4. Automatic time control table
5. The high temperature silicone pad, the pressure more evenly, 180 rotation.
6. The pressure regulator convenience, photographs can be printed on the clothes tie the cup. Hat tiles. Plates, etc.
7. You can expand the heating element, small footprint, more funcations;

Usa Way:

1 Turn on the power switch, Power switch lights. Then can setting the working parameter.( Frist use,please setting temperature, Time, more details please read the instrucation of the control panel time and temperature operation)

2 After setting the temperature,time,the machine starts to heat up heating (the temperature rose to 200 C degree and takes about 15 minutes)

3 Lifting the handle to make the machine open. Move the head to other sides, get the worktable, put the products on worktable, testing the persure if is good. If not, need to adjust the pressure knob. (Turn the knob clockwise to increase pressure, counterclockwise rotation to reduce pressure)

4 When the machine until desired temperature is reached, put the ;products on worktable, pressing the handle, press the timer, after reaching the set time, the machine issued a warning tone, lift the handle to complete the last operation;


1 If it is cool sublimation paper, printing completed. please waiting 15-20 seconds. Then tear it off. If it is heat sublimation paper, printing completed, please tear off the paper asap (Diagonal grain to tear down the clothes). Successful printed, need right time, temperature and pressure;

2 The final printed result depend on the products thickness,material and variety of sublimation paper.

3 different kinds of printing, please testing the sample. After get right time and temperature, then volume production.

4 The cup mat can not empty working, when heating, should be put cups, otherwise, will demage the heat mat or reduce the usage of the cup mat.

5 When using flat heat plate and cap mat, need preheat, when get setted temperature, then printing. Cup mat and plates map no need preheat when printing.

6 Temperature controller meter is complex, except to set the temperature and time, no need seting other extra program. Otherwise, easy to cuase the program confusion.

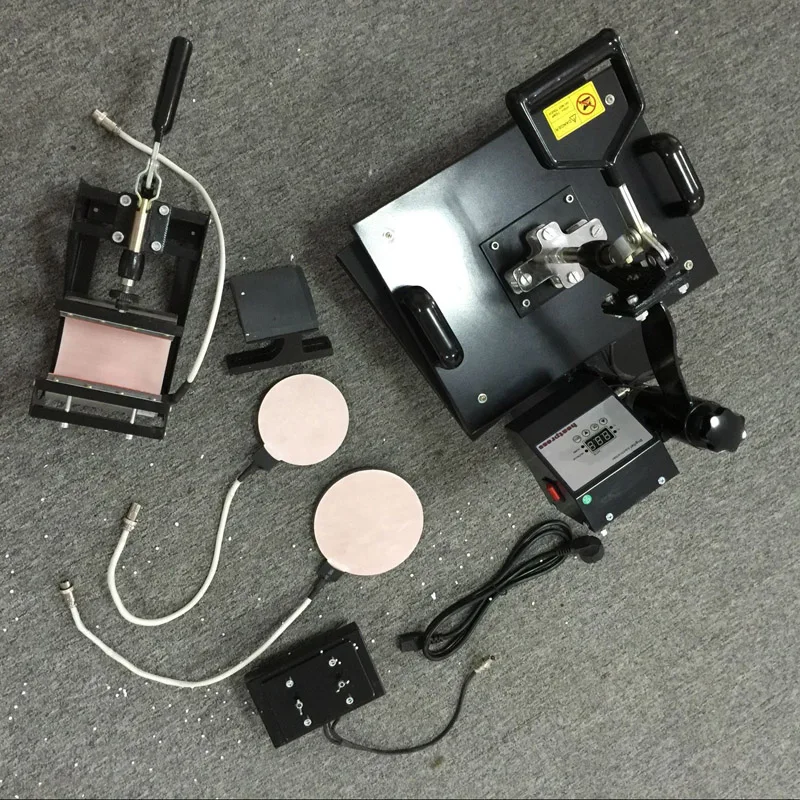

Actual picture:

Package Picture:


Simple Troubleshooting:

1 Fault Phenomenon

Method: Judgement and treatment methods

2 Power Switch is turn on,but the light of machine is off;

Method: Power interface is not firm or the fuse of the power connector is burnout

3 Press knob is inflexible;

Method: Adding the lubricating oil on the rotary knob

4 Handlebar pressed down and get bumped ;

Method: Please adjust the pressure position screw to down

5 Handlebar is hard to lift;

Method: Please adjust the pressure position screw to up or counterclockwise to adjust the pressure adjustment knob

6 Heat plate can not heating;

Method: Instrument failure or chassis of the relay does not work or heat board burned;

Our Line store have:

Manual pad printing machines, automatic 1-4 color pad printing machines

manual screen printing machine, automatic screen printing machines for printing flat or round products. Screen printing rubber, free, pad printing accessories etc.

Sewing machines

dog tag or PVC embossed machines

hot stamping machines for leather/wood/plastic

UV printer

Phone case printer

Have a please purchase trip!
