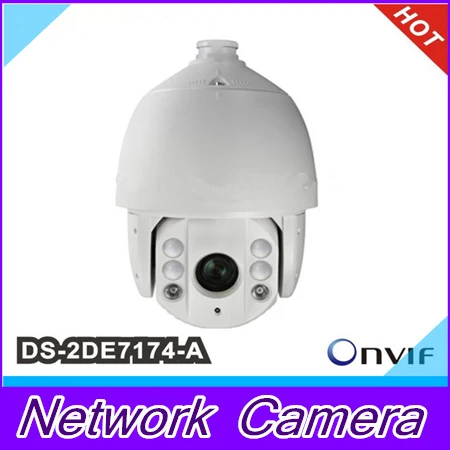

Multi-language DS-2DE7174-A 1.3MP HD Network IR Speed Dome IR PTZ outdoor dome camera DS-2DE7174-A

Multi language DS 2DE7174 A 1 3MP HD Network IR Speed Dome IR PTZ outdoor dome
Click to see details
Multi language DS 2DE7174 A 1 3MP HD Network IR Speed Dome IR PTZ outdoor dome
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $468.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

ITEM NO.: DS-2DE7174-A

1/3Progressive Scan CMOS, up to 1280×1080
25 fps at HD960p
Up to 100m IR distance
3D DNR, D WDR
3D intelligent positioning
20X Optical Zoom
IP66 rating

DS-2DE7174-A

DS-2DE7174 series

Camera
Image Sensor: 1/3Progressive Scan CMOS
Effective Pixels: 1280(H)x960(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.05Lux( F1.4, AGC ON)
B/W: 0.01Lux( F1.4, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
S/N Ratio: 50dB
BLC: ON/OFF
WDR: Support
Shutter Time: 1-1/10,000s
Day& Night: ICR
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.7-94mm, 20x
Zoom Speed: Approx.3s(Optical Wide-Tele)
Angle of View: 58.3-3.2 degree (Wide-Tele)
Minimum Working Distance: 10-1000mm(Wide-Tele)
Aperture Range: F1.4- F3.5
Pan & Tilt
Pan Range: 360endless
Pan Speed: Pan Manual Speed: 0.1-160/s,
Pan Preset Speed: 240/s
Tilt Range: -15-90 (Auto Flip )
Tilt Speed: Tilt Manual Speed: 0.1-120/s,
Tilt Preset Speed: 200/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 256
Patrol: 8 patrols, up to 32 presets per patrol
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
Infrared
IR irradiation distance: 100m
IR irradiation angle: Adjustable by zoom
Input & Output
Monitor Output: 1.0Vp-p / 75, NTSC (or PAL) composite, BNC
Audio Input: Audio input (LINE input), 2-2.4Vp-p; output impedance: 1K, 10%
Audio Output: Line level, impendance: 600
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1280×960
Frame Rate: 50Hz:25fps(1280×960), 25fps (1280×720)
60Hz:30fps(1280×960), 30fps (1280×720)
Image Compression: H.264/MPEG4
Audio Compression: G.711ulaw/G.711alaw/G.726
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: Up to 6 users
Dual Stream: Support
Mini SD Card: Manual REC / alarm REC, built-in SD/SDHC slot, up to 32GB
User/Host Level: Up to 32 users,3 Levels: Administrator, Camera control, Live view only
Security Measures: User authentication (ID and PW), host authentication (MAC address)
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Web Browser: IE 7, IE 8, IE 9, Chrome 8 +, Firefox 3.5 +, Safari 5 +
General
Menu Language: English / Chinese
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply: 24V AC (12V DC optional)
Power Consumption: 24 VAC(for A model ), Hi-PoE & 24 VAC(for -AE model)
Max. 30W(IR LED On)
Max. 21W(IR LED Off)
Working Temperature/Humidity: (outdoor)
90% or less
Protection Level: IP66 standard (outdoor), TVS 3,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimensions: 220×353.4mm (8.66×13.91)(Outdoor)
Weight (approx.): 5.5kg(12.13Ibs)
Mount Option: Long-arm wall mount: DS-1601ZJ; Pendent mount: DS-1661ZJ(20cm) or DS-1662ZJ(50cm); Ceiling mount: DS-1663ZJ
