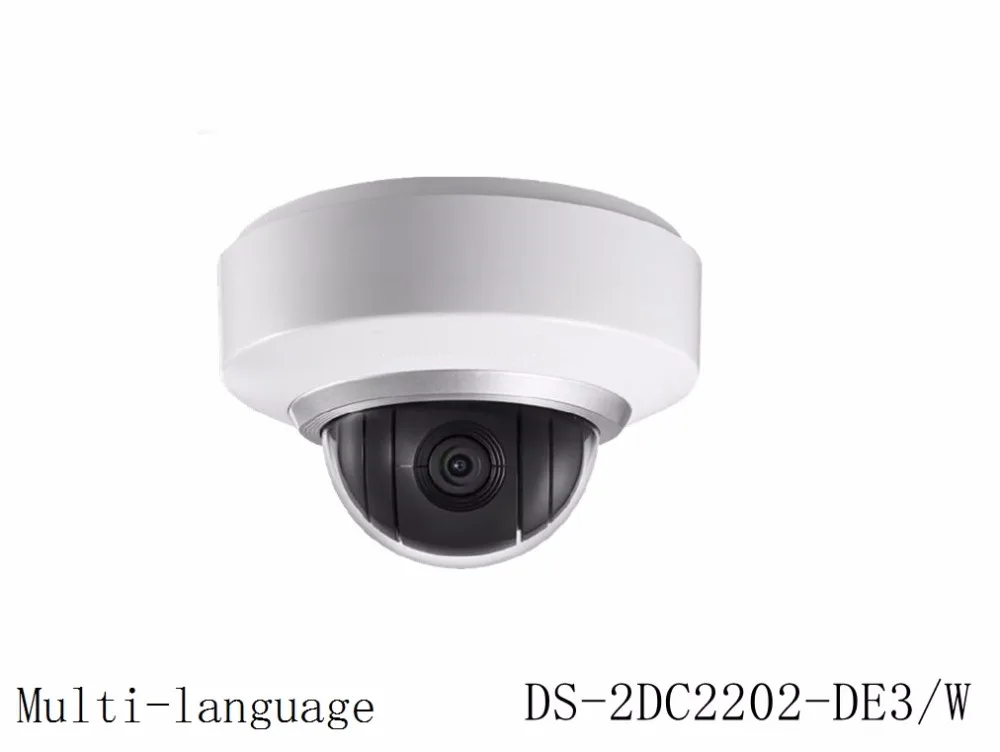

Multi-language Version DS-2DC2202-DE3/W Instock 2MP Wifi Mini PTZ CCTV IP Camera wireless Support PoE Security Camera

Multi language Version DS 2DC2202 DE3 W Instock 2MP Wifi Mini PTZ CCTV IP Camera wireless
Click to see details
Multi language Version DS 2DC2202 DE3 W Instock 2MP Wifi Mini PTZ CCTV IP Camera wireless
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $155.00 / piece

from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days


NOTE:This Camera is Multi-language Version.


For , warehouse , underground parking lot , bar , pipe and other dark or light environment.

Image sensor : 1/3 “Progressive Scan CMOS
Effective pixels : 1.3MP/2MP

Minimum illumination : 0.1 Lux/F2.0, AGC (ON),

0.01 Lux/F2.0, AGC (ON),

White Balance : automatic /a white balance/atw/indoor/outdoor

Gain Control : automatic/manual

Signal-to-Noise Ratio : more than 52 db

3D Digital Noise Reduction : high/medium/low/off

Backlight Compensation : on/off

Electronic shutter : 1s–1/10,000 s

Day and Night Mode : filter color black

Digital Variable : 16X

Privacy Covered : up to 8 area, up to eight area at the same time
In the same picture

Focus Mode : automatic

The Lens
The Focal Length : 3mm – 9mm(1.3MP); 3mm – 6mm(2MP)

Changing Times Speed : about 1.0 seconds (optical, wide-angle – telescopic)

Horizontal Perspective: 80-33.5 degrees (wide Angle – telescopic)

F Number : F2.0

Smart function

Smart Detection: regional intrusion detection, crossing the line detection, anomaly detection, motion detecting, video audio shade detection

Smart Video: broken network after continuingly, intelligent retrieval Smart image enhancement: strong inhibition

Smart Code: low bit rate, ROI, SVC

Smart Alarm: the cable is broken, an IP address conflict, memory full, memory fault, illegal access

Continuous Rotation Level Range: 350 °

Speed :

Level Keying Speed: 0.1 ° ~ 60 ° / s, speed can be set up;

Level of preset speed: 60° / s

Vertical Range: 0 ° to 90 ° (automatic roll)

Vertical Speed :

Vertical Keying: 0.1 ° ~ 50 ° / s, speed can be set up;

Vertical preset speed: 50 ° / s

Percentage Change Times :support

Preset Number: 256

Power Off Memory : support

Watch Function : preset point

Azimuth Information Display : on/off

Preset Point Video Freeze :support

Timing Task: preset point/restart/check


Main stream: tell the rate and frame rate: 50Hz: 25 FPS (1280 x 720) 60 Hz: 30 FPS (1280 x 720)

Subcode flow: tell the rate and frame rate: 50Hz: 25 FPS (704 x 576), 25 FPS (352 x 288), 25 FPS (320 x 240) ;60 Hz: 30 FPS (704 x 480), 30 FPS (352 x 240), 30 FPS (320 x 240)
Video compression, H. 264 / MJPEG

Audio compression: G. 711 G/G, 722/726 / MP2L2 / AAC
Network protocol, IPv4 / IPv6, HTTP, HTTPS, 802.1 x, Qos, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

At the same time preview frequency: up to 20

User rights: a maximum of 32 users, three level: administrator, operator and ordinary users

Safe mode: authorized user name and password, and MAC address binding;HTTPS encryption;The IEEE 802.1 x network access control, IP address filtering

Wi-fi Performance Metrics
wireless Standard:IEEE802.11, 802.11 g, 802.11 n

Frequency Range: 2.4 GHz to 2.4835 GHz

Channel Bandwidth: support 20/40 MHZ

Security: 64/128 – bit WEP, WPA/connected, WPA wpa2-psk/connected wpa2-psk, WPS

Transfer Rate: 11 b: 11 Mbps;11 g: 54 Mbps.N: cap of 150 Mbps

Transmission distance: 50 meters (without shade without interference, owing to the different environment)

System Integration
Alarm Input: 1 way switch input (0 to 5 VDC)

Alarm Output: 1, support the alarm linkage

Alarm Linkage preset points/SD card video/trigger switch output center/FTP uploading/mail/upload linkage

Audio Input: input audio input (LINE, MIC input), audio peak: [p – p], 2-2.4 V output impedance: 1 k Ω plus or minus 10%

Audio Output: linear level, impedance: 600 Ω

Network Interface: built-in RJ45 front-end ports, support 10M/ 100M network data

SD Card Interface: a built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (64G) is the biggest support, can support video/video alarm manually

Application Programming Interface (API) : a software integration of open API, support the standard protocol (ONVIF, PSIA, CGI), support hai kang SDK and third party management platform access, GB/T28181 protocol support, support E fluorite cloud platform access agreement and support

Client: client support iVMS – 4200

Browser: support IE7 + ,Chrome18 +, Firefox5.0 +, Safari5.02 + browser

General Specification
Power supply: DC12V and POE: 9W Max

Working temperature and humidity: – 10°C to 50 °C.The humidity is less than 90%

Protection grade: TVS 4000V lightning protection, surge, surge,

accord with the standard GB/T17626.5 cet 4

Installation method: a variety of installation can be selected

according to the application environment of choice

Size: Φ 125 x 137.2 mm

Weight: 650 g

NOTE:This device supports remote viewing by mobile phone and computer.
