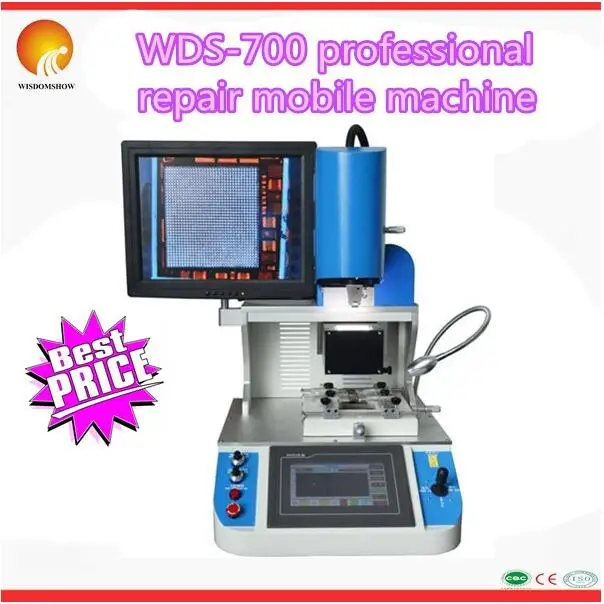

Optical alignment system BGA rework station WDS-700 for motherboard Iphone/Samsung/HTC rework
|45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.|
| On-time Delivery|
Guarantees: On-time Delivery 60 days
Optical alignment system BGA rework station WDS-700 for motherboard Iphone/Samsung/HTC Skype : jane.yang20 whatsapp : 86 13043470536
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc. The main user is repairing shops and factory to provide the after-sales service and rework. How to separate BGA chip from motherboard? How to replace a new BGA chip? Repair steps: 1) Separate the BGA chip from mother board –we called desoldering 2) Clean Pad 3) Reballing or replace a new BGA chip directly 4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera 5) replace a new BGA chip – we called Soldering
Full Specification of WDS-700 BGA rework machine Independent 2 heating zones temperature control system 1.The upper and lower heating zone,temperature precision control within ±1degree . which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently.Optical alignment system BGA rework station 2.Hot air district heating for BGA and PCB at the same time,the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.
3.Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system; 4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface,curves can be analysed,set and correct on the touch screen at any time. »»» Precision optical alignment system Using high definition and adjustable CCD color optical alignment system,beam split,amplification,lessening,fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment,adjustable image contrast;equipped with 15 ” high definition LCD monitor. Optical alignment system BGA rework station »»» Multi-functional and humanized operation system 1.Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement. 2.X,Y and R angle adopted micrometer fine-tuning,accuracy locating,precision can reach ±0.01mm.
»»» Superior safety protection function With the alarm function, after the BGA welding the machine can alarm by itself.In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.Temperature parameter having password protection to prevent any modification.Optical alignment system BGA rework station
Packing & Shipping of WDS-700 BGA Rework Station 1, Standard Export Wooden cases 2, Delivery in 2 workdays after payment confirm; 3, Shipping by TNT,DHL,FEDEX , or by air or by sea 4, Loading port: Shenzhen or Hongkong.
1. Your inquiry will be replied in 24 hours ; 2. Offer free spare parts and service within one year of warranty,but all the other relative cost should be on the buyer’s account; 3. Technology Support : Provide Demo operation video for training ;If you have time,welcome to our company,will arrange engineers to show you the operation; 4. Good and professional after-sales service; 5. Give great discount to AGENCY to ensure agents profit.
Why WDS? 1. We are the Manufactuer = own factory+ machine design+Sheet metal produced by ourself +spray the powder+ strong assemble the machine team + packaging+free training; 2. Logo/Brand:Customer’s designs and logos are welcome,we can silk-print your own logo company; 3. HUAWEI,TCL,ZTE,MEIZU,KONKA,LENOVO,FOXCONN vendor; 4. Have good market in Korea,Japan,NorthAfrica,Vietnam,Brazil,Turkey,India,Mexico and South Asia,The Mid-East and European countries; 5. 100% NEW from WDS factory; 6. Over 20 R&D engineers, with 10 year experience; 7. Over 100000 Global User; 8. All models approved CE ISO9001; 9. 100% QC inspect before shipment; 10. High quality & competitive price. USD 920.00/pieceUSD 3580.00/pieceUSD 850.00/pieceUSD 920.00/pieceUSD 3580.00/pieceUSD 3580.00/pieceUSD 16.99/pieceUSD 15.99/lot
