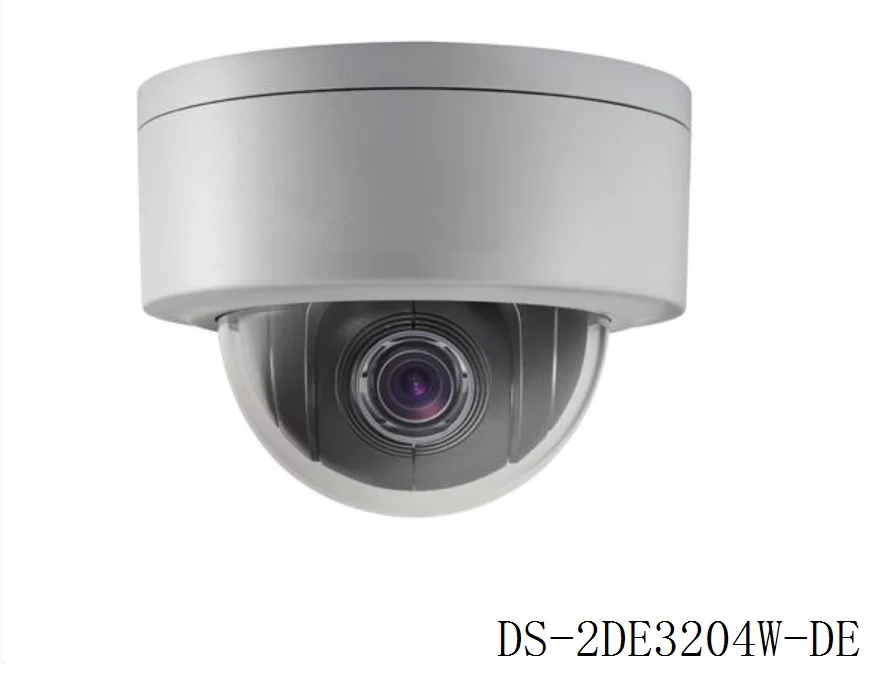

Original DS-2DE3204W-DE 2MP 1080P 3″ Mini PTZ CCTV IP Camera 2.8mm-12mm 4X Zoom POE IP66 Outdoor Use ONVIF Security Camera

Original DS 2DE3204W DE 2MP 1080P 3 Mini PTZ CCTV IP Camera 2 8mm 12mm 4X
Click to see details
Multi language DS 2DE3204W DE 2MP 1080P 3 Mini PTZ CCTV IP Camera 2 8mm 12mm
60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $200.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

NOTE:This camera is Chinese version,if you need the multi-language version,you can click the link below:

Application

For , outdoor warehouse , underground parking lot , bar , pipe and other dark or light environment.

Movement
Image sensor : 1/2.8 “Progressive Scan CMOS
Effective pixels : 2MP /1080P

Minimum illumination : 0.05 Lux/F2.0, AGC (ON),

0.005 Lux/F2.0, AGC (ON),

White Balance : automatic /a white balance/atw/indoor/outdoor

Gain Control : automatic/manual

Signal-to-Noise Ratio : more than 52 db

3D Digital Noise Reduction : high/medium/low/off

Backlight Compensation : on/off

Electronic shutter : 1s–1/10,000 s

Day and Night Mode : filter color black

Digital Variable : 16X

Privacy Covered : up to 8 area, up to eight area at the same time
In the same picture

Focus Mode : automatic

The Lens
The Focal Length : 2.8mm – 12mm, 4X

Changing Times Speed : about 1.0 seconds (optical, wide-angle – telescopic)

Horizontal Perspective: 105-33 degrees (wide Angle – telescopic)

F Number : F1.6-F2.7

Smart function

Smart Detection: regional intrusion detection, crossing the line detection, anomaly detection, motion detecting, video audio shade detection

Smart Video: broken network after continuingly, intelligent retrieval Smart image enhancement: strong inhibition

Smart Code: low bit rate, ROI, SVC

Smart Alarm: the cable is broken, an IP address conflict, memory full, memory fault, illegal access

Function
Continuous Rotation Level Range: 350 °

Speed :

Level Keying Speed: 0.1 ° ~ 60 ° / s, speed can be set up;

Level of preset speed: 60° / s

Vertical Range: 0 ° to 90 ° (automatic roll)

Vertical Speed :

Vertical Keying: 0.1 ° ~ 50 ° / s, speed can be set up;

Vertical preset speed: 50 ° / s

Percentage Change Times :support

Preset Number: 300

Power Off Memory : support

Watch Function : preset point

Azimuth Information Display : on/off

Preset Point Video Freeze :support

Timing Task: preset point/restart/check

Network
Main stream: tell the rate and frame rate: 50Hz: 25 FPS (1920X1080,1280X960,1280X720) 60 Hz: 30 FPS (1920X1080,1280 x 960,1280X720)

Subcode flow: tell the rate and frame rate: 50Hz: 25 FPS (704 x 576), 25 FPS (352 x 288), 25 FPS (320 x 240) ;60 Hz: 30 FPS (704 x 480), 30 FPS (352 x 240), 30 FPS (320 x 240)
Video compression, H.265/H. 264 / MJPEG

Audio compression: G. 711 G/G, 722/726 / MP2L2 / AAC
Network protocol, IPv4 / IPv6, HTTP, HTTPS, 802.1 x, Qos, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTCP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

At the same time preview frequency: up to 20

User rights: a maximum of 32 users, three level: administrator, operator and ordinary users

Safe mode: authorized user name and password, and MAC address binding;HTTPS encryption;The IEEE 802.1 x network access control, IP address filtering

System Integration
Alarm Input: 1 way switch input (0 to 5 VDC)

Alarm Output: 1, support the alarm linkage

Alarm Linkage preset points/SD card video/trigger switch output center/FTP uploading/mail/upload linkage

Audio Input: input audio input (LINE, MIC input), audio peak: [p – p], 2-2.4 V output impedance: 1 k Ω plus or minus 10%

Audio Output: linear level, impedance: 600 Ω

Network Interface: built-in RJ45 front-end ports, support 10M/ 100M network data

SD Card Interface: a built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (128G) is the biggest support, can support video/video alarm manually

Application Programming Interface (API) : a software integration of open API, support the standard protocol (ONVIF, PSIA, CGI), support hai kang SDK and third party management platform access, GB/T28181 protocol support, support E fluorite cloud platform access agreement and support

Client: client support iVMS – 4200

Browser: support IE7 + ,Chrome18 +, Firefox5.0 +, Safari5.02 + browser

General Specification
Power supply: DC12V and POE: 8W Max

Working temperature and humidity: – 30°C to 65 °C.The humidity is less than 95%

Protection grade: IP66

TVS 4000V lightning protection, surge, surge,

accord with the standard GB/T17626.5 cet 4

Installation method: a variety of installation can be selected

according to the application environment of choice

Size: Φ 140.7 x 107.2 mm

Weight: 950 g

NOTE:

Dear customer, this product is the Chinese version , but please don’t worry, we will give you the multi-language client iVMS-4200, it supports 22 languages, including English, Russian, French, Spanish, Korean, Arabic, etc., there is always a kind of language is suitable for you, please rest assured purchase.It is so powerful that can manage all products of Hikvision, including IP Camera, NVR and DVR, it can search and change the IP address of the device.

1, Language switching,includ 22 languages

2, Device remote management no need to login page

3, Device remote preview,no need to login page

NOTE:This device supports remote viewing by mobile phone and computer.
