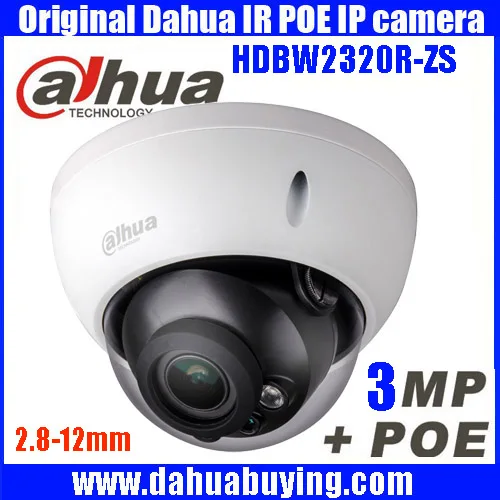

Original english Dahua 3MP 2.7-12mm Lens Full HD Waterproof Vandal-Proof Network IR Dome Camera IPC-HDBW2320R-ZS HDBW2320R-ZS


![]() | 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller. |
---|---|
![]() | On-time Delivery Guarantees: On-time Delivery 60 days |
Dahua 3MP 2.7-12mm Lens Full HD Water-Proof & Vandal-Proof Network IR Dome Camera IPC-HDBW2320R-ZS Replacement IPC-HDBW2300R-Z
Power adapter not in the package ,if you need it ,please contact us before payment ,thanks so much!!
Features
>1/3” 3Megapixel progressive CMOS
>H.264 & MJPEG dual-stream encoding
>Max [email protected](2048×1536) & 25/[email protected](1920 x1080)
>DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
>2.7~12mm varifocal lens
>Max IR LEDs Length 30m
>IP66, IK10, PoE
Specifications
Model | DH-IPC-HDBW2320R-ZS | ||
Camera | |||
Image Sensor | 1/3” 3Megapixel progressive scan CMOS | ||
Effective Pixels | 2048(H)x1536(V) | ||
Scanning System | Progressive | ||
Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/10000s | ||
Min. Illumination | 0. 01Lux/F1.4 (Color), 0Lux/F1.4(IR on) | ||
S/N Ratio | More than 50dB | ||
Video Output | N/A |
|
Lens Type | Manual/Fixed Iris | Motorized/Fixed Iris | |
Mount Type | Board-in Type | Board-in Type | |
Video | |||
Compression | H.264/ H.264H/ MJPEG | ||
Resolution | 3M(2048×1536)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | ||
Frame Rate | Main Stream | 3M(1 ~ 20fps)/1080P (1 ~ 25/30fps) | |
Sub Stream | D1/CIF(1 ~ 25/30fps) | ||
Bit Rate | H.264H: 40K ~ 8192Kbps; MJPEG: 40K~16384Kbps | ||
Audio | |||
Compression | N/A | ||
Interface | N/A | ||
Network | |||
Ethernet | RJ-45 (10/100Base-T) | ||
Wi-Fi | N/A | ||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
Compatibility | ONVIF, PSIA, CGI | ||
Max. User Access | 20 users | ||
Smart Phone | iPhone, iPad, Android, Windows Phone |
The installing process should be fairly easy to do, even for the inexperienced. I will try to explain how to get this camera up and running. First connect the camera to your router, after that you need to use a configuration tool to change the default IP address with one that will work with your network.
To do this open up the included CD and open the folder named Tools then Config tools and inside there should be 2 files, one instruction manual and one .rar file. Unpack the .rar file and run the ConfigTool.exe file.
Press refresh and the software will find your camera and allow you to change the IP address. Remember that the default password and user-name is admin, you will need to change this later for security reasons to something memorable. You can also change PPOE from here.
When you have done the above steps you should now be able to access the camera by typing your IP address into your browser. Log in with Admin as both the user-name and password. Now you can change any settings you want for the camera.
Go to set-up menu and here you can do any changes you want. There are three different pre-set profiles Day, Night and Auto. By default everything is set at auto and brightness, contrast, saturation and sharpness are all set to a value of 50.
Play around with the settings here for both day and night to see which gives you the best image quality. Daytime works fine with all settings at default but for night time you may need to tweak it a little to find the best settings for your conditions.
For remote viewing with mobile devices use the included software called DMSS, available for Android, Apple, blackberry, Symbian and Windows operating systems. It also comes with a software called PSS (Pro Surveillance System) which we took a closer look at.
After youve installed it and opened it up you need to add your camera(s). Open up device manager, press the search device button and after its located your camera click add management.
This is how the alarm recordings shedule looks like.
Lets have a look at the image quality. This is a daytime image taken at late evening with all settings by default so it is a little dark, I should probably have changed the brightness a bit, but I think the quality of this camera speaks for it self with this snapshot.
And heres a nighttime snapshot. As I said in the beginning of this review, we have about 25m from camera to the road in this test. As you can see in this snapshot, 25m is about maximum length if you would like to see any details in your recordings.
And also Playback
USD 139.00/pieceUSD 115.00/pieceUSD 280.00/pieceUSD 83.00/pieceUSD 110.00/pieceUSD 100.00/pieceUSD 93.00/pieceUSD 150.00/piece
Credit cards are welcome through our We also accept bank account deposit/transfer. Please make the payment due within 2 business days after you win the item.
1.We are professional DAHUA products reseller who offers 100% original products manufactured by DAHUA, but we will only offer some unbranded products(without DAHUA brand on the product) from 2015;some style will havebot dahua logo,please understand!
2. Please take note that our inventory is changing every day, so we cannot make sure what you order has stock. If you need the order urgently , please contact us before you pay. all dahua products we can send you in 15- 25days normally if we havenot stock ,If you cannot wait, please don’t place order;
3.All DAHUA products are with English version only. If you need to buy any other model which is not displayed in our shop, please contact with us;
4.Retail and wholesale customers are both welcomed. If you want to place quantity order, please contact with us;
5.For payment, we also accept T/T and Western Union. If you pay by T/T or Western Union, we will offer you 5% discount. Our online shop is mainly for retail and we will require you to pay by T/T or Western Union for order up to certain quantity;
6.For shipping, we set EMS by default but other shipping methods like DHL, UPS, FEDEX etc. are also available. You can just pay for the EMS shipping. We will evaluate which express is the best for your country and then use the best one if the cost you have paid is enough or similar. Or if you like any express company, please contact with us before you pay. The shipping cost charged by the system is not correct normally when you order different items together, so please remember to ask us to check the exact cost and revise price for you before you order;
7.For product warranty, we provide 2-year warranty period(since the date you receive the order). Shipping cost of returning the defective product will be borne by the buyer after 1 years later
8.If you have any question, please leave message to us. We will reply you as soon as possible;
9.Please confirm the delivery for us after you have received the order and everything is ok;
10.If you are satisfied with our product and service, please give us a good feedback . Cutomers who LOVEs opening dispute or giving bad feedback without appropriate reason are not welcomed.
and any clients have collect our website for the following QR Code we will send special gifts and more discount!
