Outdoor 3MP Bullet Network Camera IPC-HFW2320R-ZS 4CH NVR NVR4104 Varifocal Lens Micro SD Card Supports

Outdoor 3MP Bullet Network Camera IPC HFW2320R ZS 4CH NVR NVR4104 Varifocal Lens Micro SD Card
Click to see details
Outdoor 3MP Bullet Network Camera IPC HFW2320R ZS 4CH NVR NVR4104 Varifocal Lens Micro SD Card
80 % of buyers enjoyed this product!
Availability: in stock
Price:  US $630.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

USD 1569.00/pieceUSD 475.00/pieceUSD 499.00/setUSD 630.00/pieceUSD 1129.00/setUSD 489.00/setUSD 1199.00/setUSD 379.00/set

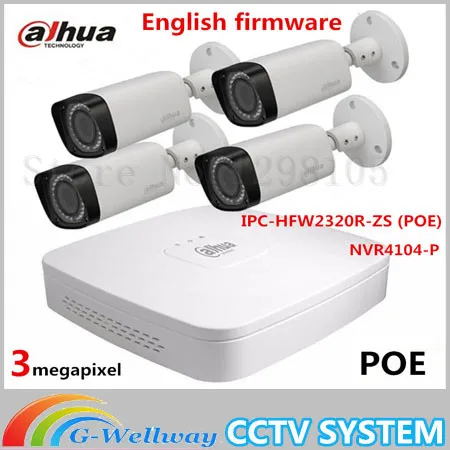

Dahua 4Channel 3MP Full HD IP Camera System Set:IPC-HFW2320R-ZS+NVR4104

Package include:

  • 4xIP Cameras HFW2320R-ZS(POE)
  • 1x4CH Network Video Recorder NVR4104(NON-POE)

Lens: 2.7mm-12mm varifocal lens +Micro SD Card support

3Megapixel IP IR Bullet Camera Autofocus

Overview

  • >1/3 3Megapixel progressive CMOS
  • >H.264 & MJPEG dual-stream encoding
  • >Max 20fps3M(2304×1296) &25/30fps1080P(1920 x1080)
  • >DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • >Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • >2.7~12mm varifocal lens
  • >Max IR LEDs Length 60m
  • >IP67, PoE

Model

DH-IPC-HFW2320R-VFS-IRE6

DH-IPC-HFW2320R-ZS-IRE6

Camera
Image Sensor 1/3 3Megapixel progressive scan CMOS
Effective Pixels 2304(H)x1296(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination

0. 1Lux/F1.4 (Color), 0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

Video Output

N/A

Camera Features
Max. IR LEDs Length 60m
Day/Night Auto(ICR)/Color/B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto/Manual
Gain Control Auto/Manual
Noise Reduction 3D
Privacy Masking Up to 4 areas
Lens
Focal Length 2.7mm~12mm 2.7mm~12mm
Max Aperture F1.4 F1.4
Focus Control Manual Auto
Angle of View H: 92~ 28 H: 92~ 28
Lens Type Manual/ Fixed Iris Motorized/ Fixed Iris
Mount Type Board-in Type Board-in Type
Video
Compression H.264/ H.264H/ MJPEG
Resolution 3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream 3M(1 ~ 20fps)/1080P (1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264H: 40K ~ 8192Kbps;
Audio
Compression N/A
Interface N/A
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility ONVIF, CGI, PSIA
Max. User Access 20 users

Smart Phone

iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory Slot Micro SD , Max 128GB
RS485 N/A
Alarm N/A
PIR Sensor Range N/A
General
Power Supply DC12V/PoE (802.3af)
Power Consumption <5.5W <8.5W
Working Environment -30C~+60C, Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Dimensions 72mm×80mm×212.8mm
Weight 0.65kg

More details.

About NVR:4CH 8POE NVR4104

NVR4104/4108(NON-POE Model)

NVR4104-P/4108-P(POE Model Option)

Feature:

>Up to 4/8/16 channel IP camera input

>H.264/MJPEG dual codec decoding

>Max 80Mbps incoming bandwidth

>Up to 5Mp resolution preview&playback

>HDMI/VGA simultaneous video output

>All channel synchronous realtime playback, GRID interface

>Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and etc.

>ONVIF Version 2.4 conformance

>3D intelligent positioning with Dahua PTZ camera

>Support 1 SATA HDD up to 4TB, 2 USB2.0

>Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

NVR4104/4108(NON-POE Model)

Model DH-NVR4104 DH-NVR4108
System
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 4 channel 8 channel
Two-way Talk 1channel Input, 1channel Output, RCA
Display
Interface 1 HDMI,1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4 1/4/8/9
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
Compression H.264/MJPEG
Resolution 5Mp(2560×1920)/3Mp(2048×1536)/1080P(1920×1080)/720P(1280×720)/D1 (704×576/704×480)
Record Rate 80Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Playback & Backup
Sync Playback 1/4 1/4/8 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Network
Ethernet 1 RJ-45 port (10/100Mbps)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.)
Max. User Access 128users
Smart Phone iPhone, iPad, Android
Storage
Internal HDD 1 SATA ports, up to 4TB
Auxiliary Interface
USB 2 ports (2 Rear),USB2.0
General
Power Supply DC12V/2A
Power Consumption 10W(without HDD)
Working Environment -10C~+55C / 10%~90%RH / 86~106kpa
Dimension
(W×D×H)
Smart 1U, 205mm×205mm×45mm
Weight 0.5KG(without HDD)

NVR4104-P/4108-P(POE Model Option)

More details(NVR).

REAL PICURE TAKEN FROM MOBILE PHONE APP. IOS APP CAPACTURED PICTURE ANDROID APP CAPACTURED PICTURE NVR INTERFACE
