Features:
Multi-functional dual extruder:
With dual extruder, you can print a single two-color object or two objects with each coming in different colors. Besides, you can just print one single-color object, as with other single-extruder 3D printers; or you can use one extruder for infill or support.
Safe, stable and space-efficient:

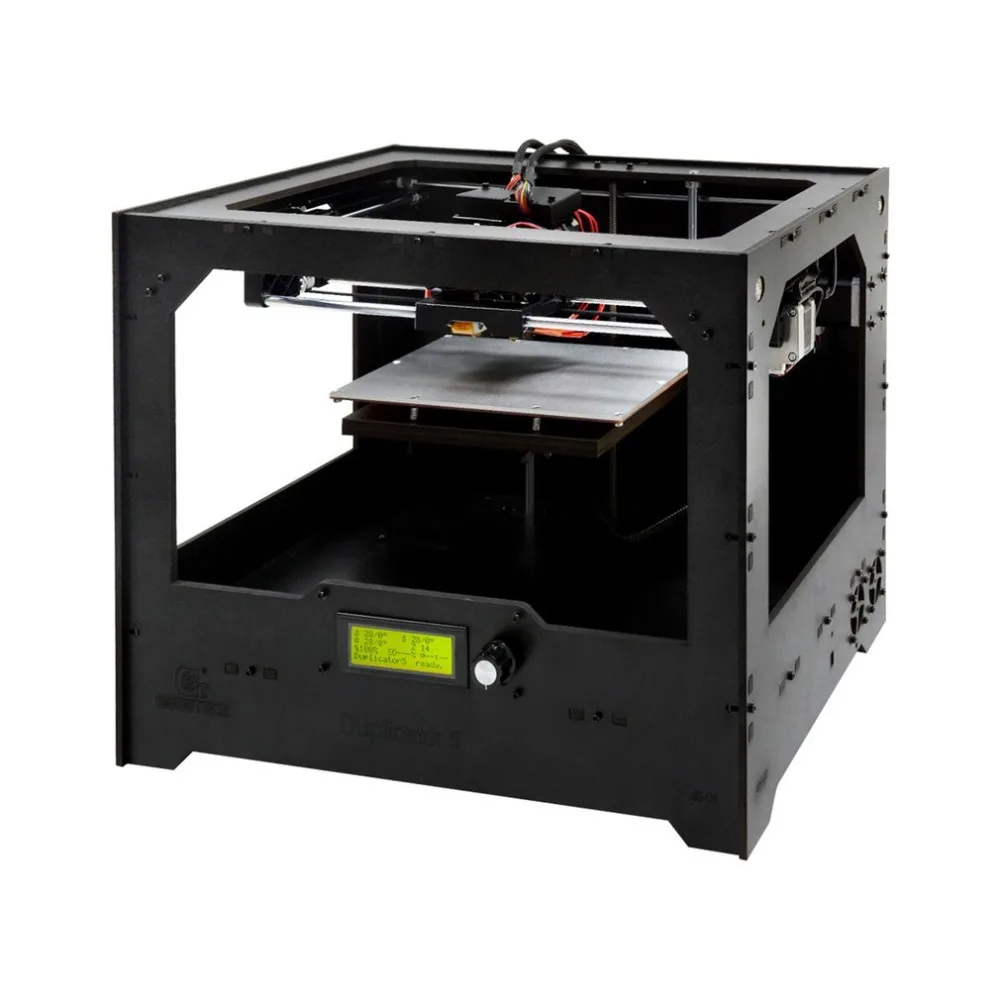

High-quality wooden plank renders Duplicator 5 firm and durable as well as attractive in appearance. The main board and power supply unit are installed at the bottom of the printer, safe and space efficient. This structure lowers the gravity center of the printer, providing stable support for printing. The half-opened design of the printer provides you with various perspectives to observe the whole printing process as well as enough protection.
Printing quality:
High layer resolution and tolerance deliver smooth surface finish and durable object structure.
Large print volume:
230x150x150mm standard printing area, enough printing volume catering to your creative ideation.
Self-developed GT2560 control system.
The main board is our self-developed GT2560 3D printer control board which supports dual extruder and comes with more well-designed interfaces.
With its flash memory as 256KB and working frequency as 16MHZ, GT2560 control system empowers Duplicator 5 to run at peak performance.
User-friendly LCD 2004 control board & SD card, stand-alone printing enabled.
Open filament system: ABS/PLA/Flexible PLA/ Nylon/Wood-Polymer, providing extendable space for your creativity. Give you a wide range of printing choices.
Descriptions:
Travel feed rate: 1000mm/min
Z-Axis feed rate: 200mm/min
Printer’s maximum printing volume 230 * 150 * 150
Number of extruders: 2
Layer resolution: 0.1-0.3mm
Filament diameter: 1.75mm
Nozzle diameter: 0.4mm
Filament type: ABS/PLA/ Wood/Nylon
Operating system: for Windows/ for MAC/ for Linux
Power supply: 110V/1.5A, 220V/0.75A(input), DC24V, 15A(output)
Plug type: EU
Specifications:
Model: D5
Color: black
Size: 467x313x375mm
Package size: 51x43x16.5cm
Package Included:
8 x Smooth Rod
58 x Washer
8 x Locking ring
4 x Wing nut
2 x Hex nut
47 x Square nut
46 x Hex nut
1 x Z-axes nut
121 x Screw
2 x Belt Spring
4 x Hotbed Spring
12 x Linear bearing
5 x Ball bearing
1 x Driven wheel shaft
8 x Pulley
1 x Belt
1 x Belt loop
10 x Spacer
1 x Motor gasket
1 x Timing belt plate
3 x Endstop
1 x Control board
5 x Heat sink
2 x sticker
1 x Power supply Unit
1 x LCD 2004
1 x knob
1 x Building platform
1 x Tape
1 x Hotbed
3 x Stepper motor
2 x Fan
1 x MK8 Dual extruder
2 x Extension board
4 x Hex copper spacer
2 x Extension board cover
2 x Extruder wire
1 x USB cable
1 x Motor wire 3-1
2 x Extruder motor wire
1 x Power Cable
1 x Hotbed wire
1 x Endstop wire
Notes:
The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
