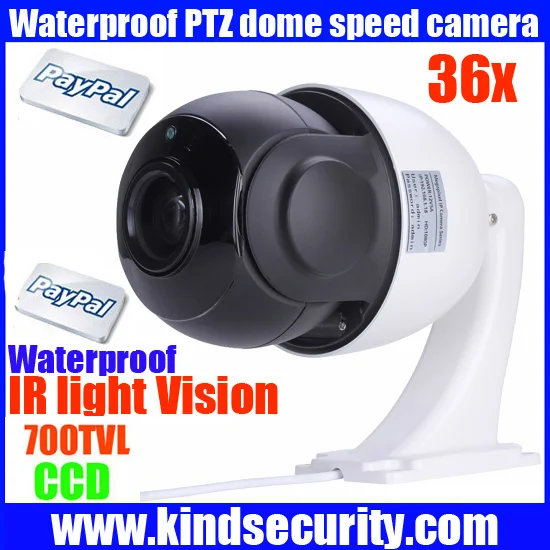

PTZ analog Camera 700TVL 36X optical zoom outdoor mini sony effio high speed dome Security camera

Product Introduction

1) Precision motor-driven, responsive, smoothly operation, the precision deviation less than 0.1 degree.

2) CCD700TVL/CCD480TVL , 1/3” CCD, 36x optical zoom

3) Support lightning protection, anti-surge, anti-surge function.

4) Outside weather-proof level up to IP66

5) Support mobile phone Android, iPhone OS view app:cloudlens

6) Support PC HCMS Client OR Standard Browser IE/Firefox/Google Chrome view


1)6 PCS high-power infrared lights, no flashlight effect , IR distance 40-80 m.

2)360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area

3)Max. pan preset speed of 30°/s and max. tilt preset speed of 30°/s

4)Pan keyboard speed 0.6°~180°/s, tilt keyboard speed 3.5°~30°/s.

5)Support 220 preset, support 8 patrols, each patrol can contain up to 32 presets;

6)Support 4 patterns, can totally record up to 10 minus.

7)Support scan between two presets, area limited.

8)Support Proportional zoom function, rotation speed can be adjusted automatically according to zoom


9)Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of

inactivity (contain the idling condition after the power supply has been turn on)

meter with waterproof case

6pcs LED light for 50m-80m IR light vision!

Effective Pixels:


Min. Illumination:

Color: 0.2Lux(F1.6, AGC ON),

B/W: 0.01Lux(F1.6, AGC ON)

White Balance:




S/N Ratio:


Day & Night:


Backlight Compensation:


Digital Noise Reduction:


Wide Dynamic Range:


Shutter Speed:


Focus Mode:



Focal Length:

36X optical zoom,day vision 500m

Zoom Speed:

Approx.3s(Optical Wide-Tele)

Angle of View:

68.5 ~ 4.2 degree (Wide-Tele)

Min. Working Distance:

10mm ~ 1,000mm (Wide-Tele)

Aperture Range:

F1.6 ~ F 2.8


Pan / Tilt Range:

Pan: 360° endless; Tilt: -0° ~ 90° (Auto-Flip)

Pan / Tilt Speed:

Pan Speed: 0.6° ~ 200° /s,Tilt Speed: 3.5° ~ 30° /s

Proportional Zoom:


Number of Preset:



8 patrols, up to 32 presets per patrol

Park Action:

Pattern / Pan Scan / Tilt scan / Random scan / Frame scan



10Base-T/100Base-TX, RJ45 connector

Max. Image Resolution:


Frame Rate:

60HZ:30fps(1920×1080) 60HZ:30fps(1280×1080)

Image Compression:


Simultaneous Live View:

Up to 6


Dual Streams

User/Host Level:

Up to 32 users,3 Levels: Administrator, Camera control,

Live view only

Security Measures:

User authentication (ID and PW)

Host authentication (MAC address)


Application programming:

Open-ended API, support Onvif, PSIA and CGI


IR distance:


RS-485 Protocols:

Pelco-P, Pelco-D, self-adaptive

Working Temperature:

12VDC: -20°C~60°C


90% or less

Protection Level:

TVS3000V lightning protection, surge protection and

voltage transient protection, weather proof: IP66

Package Dimension:


Weight (approx.):


Camera Weight:


Mount Option:

Wall mount,



Horizontal 360 degree Vertical 180 degree All Direction Monitor

36X Optical Zoom (High Speed Auto Focus)
Wider surveillance possible by using the 36X optical zoom with high speed auto focus


*1 X PTZ speed dome ccd dome Camera with Aluminium Housing
*1 X Power Adapter(AU, EU, UK and US plug available for selection)
*1 X Wall Mount bracket or ceiling for choice.
*1 X User Manual

please believe us This is 36X zoom AHD camera

we have 3 style bracket for your select

  • All our camera can Accept your company Logo,Welcome your contact with us for the quotation list!

Credit cards are welcome through our We also accept bank account deposit/transfer. Please make the payment due within 2 business days after you win the item.

Return / Exchange / Warranty Terms and Conditions
– All returns must email.

– Contact * for a Return Merchandise Authorization. Approved warranted items will be replaced/repaired immediately with the same merchandise, or similar item of our choice.

– Items returned that were abused will have to be approved by our warranty department for exchange. If we no longer carry the item that was returned due to a defect, we will send a working comparable item of our choice.

– Shipping is always non-refundable. The return has to be made within 7days of the receive date.

Overstep is the best wholesell agent for PTZ dome camera in China market,

after your finish the order,

please can contact with us,and we have and

and to teach you how to repair your camera in your country to avoid send back to China!

as underwater will be repair 1-2years,maybe damage,maybe camera put in water,also we can help you repair if you order from our agent or from other seller,ofcourse we will charge money,if your order from us directlly,please keep contact with us and

with =

your will get 2 years warranty and wholelife upgrade soft free support!
