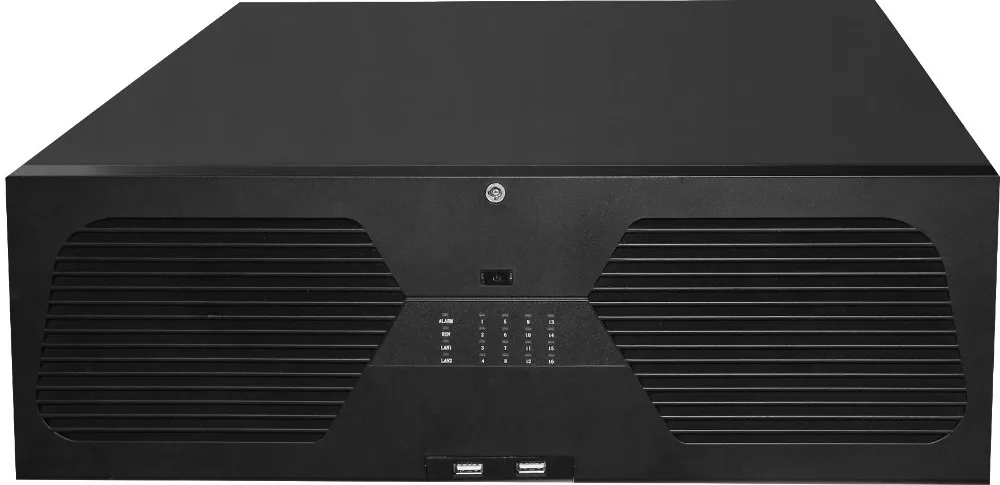

super 16HDD 128CH video input 16CH alarm input and output NVR Max support 16CH 1080P playback network video recorder
Key Features
Flip-open chassis, prepositive slot type HDD installation, reliable and Easy-maintainable
Support 16HDD, HDDs hot-swap, RAID0, RAID1, RAID6
Support i8S super protocol, plug & play, IPC no needs IP
Support Third-party Onvif, RTSP standard network cameras
Support Onvif outward passageway, can compatible with onvif standard video management software Support GB28181 standard protocol
Support 4K video preview, storage and playback
Support H.264, H.264 encoding device self-adaptive connection
2x HDMI, 2x VGA output heterologous output, support 4K high resolution output
New GUI, support start recording with one key
Support IPC centralized management, including IPC parameter configuration, information import/output, two-way audio, upgrade, ect
Support double password to do video playback and backup
Support I8S protocol IPC smart detection and alarm linkage like: cross the border, area entering/leaving, intrusion detecting, hover, people gathering fast moving, illegal parking, goods leave over, goods loss, face detection, car plate reading, audio input abnormal, environment change and ect.
Support car place search function, can search the plate image that meet requirement and do playback
Support face detection, can search the face image that meet requirement and do playback
Support motion detection data filter when do playback, support video summary playback
Support time-phased playback, assigned the video to multi-screen do different playback at same time
Support smart search, backup and playback
Support channel grouping
Instant playback for assigned channel during multi-channel display mode
Max support 16ch 1080P playback
Support multi-channel image play and thumbnail play
Support 32X, 64X 128X, 256X fast playback
|
Model No. |
N9216-128H-R |
|
|
Operation System |
Embedded LINUX system |
|
|
Image Code Control |
Image code quality adjustable, variable bitstream optional. |
|
|
Dual Stream |
Each channel can set main stream and sub stream |
|
|
Video Standard |
H.264+/H.264 |
|
|
Monitoring Image Quality |
4K/5MP/3MP/1080P/960P/720P |
|
|
Image Motion Detection |
Each screen can set multiple detection areas and set 6-level sensitivity (IPC Support) |
|
|
Recording Playback Quality |
Any 16ch/9ch/4ch/1ch playback simultaneously. |
|
|
Region Cover |
Every channel can set 4 cover regions (IPC Support) |
|
|
Recording Mode |
Support manual, auto, motion detecion, alarm trigger record mode. |
|
|
Backup Way |
Support U disk, USB mobile HDD, USB DVD-RW, network storage and backup. |
|
|
Operation Way |
Mouse, keyboard |
|
|
Local Login |
User name and password. |
|
|
Recording Storage |
Local HDD, network |
|
|
External Ports |
Video Input |
128 × 1080P(1920*1080) H.264+ 2M/ch |
|
128 × 3MP(2048*1536) H.264+ 3M/ch |
||
|
64 × 5MP(2592*1944) H.264+ 8M/ ch |
||
|
36 × 4K(3840*2160) H.264+ 8M/ ch |
||
|
Video Input |
According video channel number do 1:1 audio input |
|
|
Video Output |
2x VGA+2x HDMI |
|
|
Audio Output |
1ch RCA |
|
|
Network Port |
2 10M/100M/1000M |
|
|
RS485 Port |
Full duplex standard 485 ports. |
|
|
USB Port |
1x USB3.0, 2x USB 2.0 |
|
|
Alarm Input |
16ch |
|
|
Alarm Output |
16ch |
|
|
HDD |
HDD Port |
16x SATA+2x eSATA HDD port |
|
MAX Capacity |
Each port supports MAX 6TB HDD |
|
|
Mobile Surveillance |
Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android) smart phone |
|
|
Power Supply |
ATX110-220V 300W 50-60Hz |
|
|
Power Consumption |
≤50W without HDD |
|
|
Working Temperature |
-10 degree to 55 degree |
|
|
Working Humidity |
10%-90% |
|
|
Size |
437mm×483mm×143mm |
|
|
Weight(without HDD) |
18.5Kg |
|
