IP CAMERA (referred to as IPC): IPC is a combination of traditional cameras and network technology to produce a new generation of cameras, it can be transmitted through the network image side of the globe
With the rapid development of network, network products gradually cover every corner of our lives. The development of innovative network cameras, are widely used in many fields, such as education, business, health care, public utilities, etc.

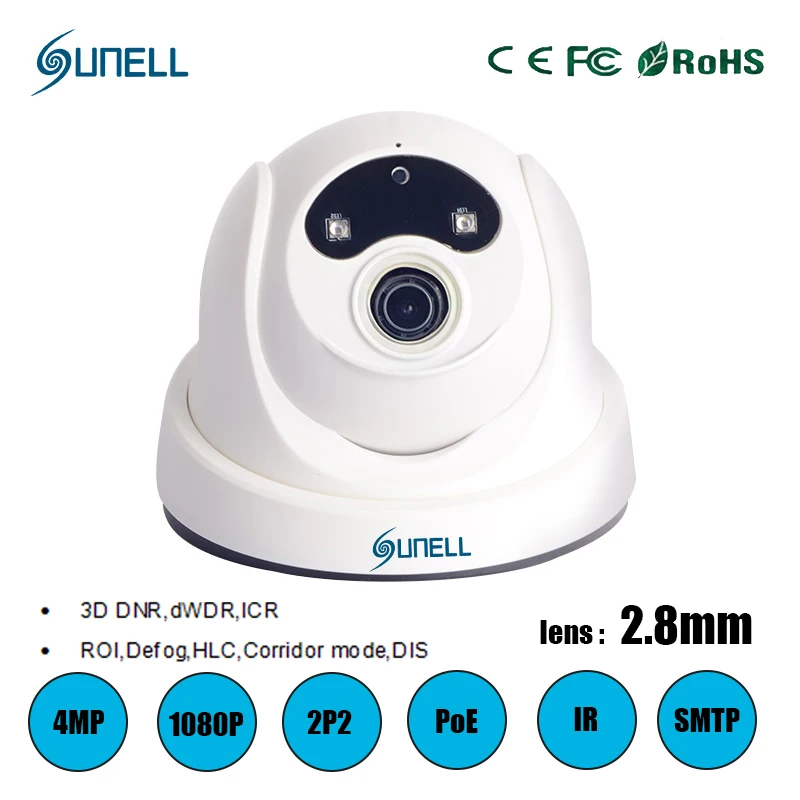

- · 1/3″ Progressive Scan CMOS
- · 2.8/3.6/6mm optional
- · 4MP@15fps,3MP@20fps,1080P@30fps
- · Triple Streams
- · IR Range 10-15m
- · Smart IR
- · Low bitrate ,Excellent low light performance
- · 3D DNR,dWDR,ICR
- · ROI,Defog,HLC,Corridor mode,DIS
IP camera working diagram:
Camera connection method schematic
Method 1 : IP Camera remote connect with mobile phone or computer by POE to NVR :
Advantages of this approach: no additional power supply, through the POE power supply . Simultaneously connect multiple cameras managed by NVR
NOTE: NVR andRouter have not include this link , If you need buy NVR you can click here: )
Method 2: IP Camera remote connect with mobile phone or computer
Advantages of this approach: Economic, just a power adapter can be completed on a set of monitoring system. And can be remotely viewed via mobile phone or computer.
NOTE: Power adapter andRouter have not include in this link .
|Image Sensor||1/3” Progressive Scan CMOS|
|Min. illumination||Color 0.05Lux;IR ON 0 Lux|
|Day & Night||ICR|
|Wide Dynamic Range||dWDR|
|Digital Noise Reduction||2D/3D|
|Video Compression||H.264 High/Main/Baseline Profile, MJPEG|
|Bit Rate (CBR/VBR)||Main stream:500kb-12000kb ;Sub stream 100kb-6000kb|
|Audio Compression||G.711 ,RAW_PCM|
|Stream|| Stream1 2688*1520/2560*1440/2304*1296/1920×1080
Stream 2 720p to QVGA
|Stream 2 720p to QVGA|
|Image Setting||Rotate Mode,Saturation,Brightness,Contrast,Sharpness|
|9:16 Corridor mode||Yes|
|Network Protocols:||HTTP,HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, PPPoE, Unicast and Multicast supported.|
|Alarm Trigger||Motion Detection,Network disconnect,Disk alarm,I/O alarm|
| Smart Upgrade
Advance: Motion Detection,Line Crossing,Tamper, Area Instrusion, Camera Move,Dwell,Multiple
Dwell,Retrograde Detection,Object Left,Object Remove,Abnormal Speed, Illegal Parking,
Network disconnect,Disk alarm,I/O alarm
|RTSP Video||Standard RFC2326, Support QuickTime / VLC Player.|
|Security||User security authentication, Reset, Hardware WatchDog|
|Web Language||English, Chinese, Polish, Italian, Portuguese, Spanish.(Sunell Brand)|
|Ethernet||1 Ethernet (10/100 Base-T) RJ-45 Connector|
|Audio I/O||1ch Audio In,1ch Audio Out|
|Alarm I/O||1ch Alarm In,1ch Alarm Out|
|BNC Output||Default Not support ,Optional|
|Reset Button||Yes (build-in)|
|Edge Storage||Default Not support,Optional Micro SD/SDHC slot ,Max 32GB|
|Power Consumption||5W(IR LED OFF) ; 7W ( IR LED ON)|
|OperatingTemperature||-30 Degree Celsius ~+55 Degree Celsius|
|Operating Humidity||0% – 90% RH|
|Approvals||CE / FCC|
Official standard configuration:
About Sunell: Since its foundation in 2002, Sunell has been committed to the research, development and innovation on the intelligent video products and solutions, and has been the leading company in surveillance industry in China. With its headquarters located in Shenzhen, Sunell has 24 branch offices in China and has set up 5 international branch offices in South Africa, Taiwan, Singapore, USA and Europe. Pursuing top quality, Sunell’s products have served 93 countries and regions in the world, and provided security for billions of people. Sunell insists on the independent technology innovation, and has constructed an international high level R&D platform. The average annual R&D investment accounts for 10% of the sales volume, and part of the independent technology ranks in the leading level internationally. Sunell was awarded the ‘China smart city recommended brand’ in continuous 3 years, ‘Top 10 Chinese CCTV brand’ in continuous 8 years, and ‘top 10 scholarly enterprise of Shenzhen city’. Rooted in Shenzhen, Sunell always regards ‘creation beyond customers’ expectations’ as its continuous motive power for development. With open cooperation idea and agile marketing network, Sunell has assisted the construction in the smart city and the industries of finance, energy source, forest, transportation, intelligent building and civil fields, etc, providing a high quality safe enjoyment for people in both life and work. In the times that the internet technology drives the revolution of various industries, Sunell has been persisting in the innovation. With the philosophy of ‘loyal to video industry, but not limited to the security’ and ‘connecting with more secured world’, Sunell has endeavored to provide more competitive products and solutions for ISP, enterprises and consumers. With the enterprise culture of ‘social commitment, virtue cultivation, making harmony and mutual development’, Sunell actively participates in various public activities and has sponsored a philanthropic foundation. Sunell has carried out to learn the Chinese traditional culture for many years; the company is full of rich scholarly atmosphere, helping employees to improve the professional knowledge and cultural quality. Moreover, Sunell provides a good opportunity for many young staffs to connect with the world, equally dialogue and turn the dreams into reality. Sunell, your reliable partner!
